McFarlane Mfg. Co.
McFarlane - Model WDL-2100 Series -16-Bar Rear Fold Harrow
The 16-Bar Rear Fold gives you double coverage, and double performance. With 2-to-3 times the normal number of bars and spikes, McFarlane’s 16-Bar Rear Fold thoroughly breaks and stirs the soil, significantly reducing field preparation time.
Most popular related searches
folding harrow
harrow
soil conditioning
tillage machine
tillage
tillage harrow
tillage management
seeding
herbicide
grain management
Depending on soil conditions, some operators use the McFarlane 16-Bar Rear Fold alone for spring field preparation. The 16-Bar Rear Fold Harrow is the ideal tool for shallow chemical incorporation. It provides superior coverage taking chemicals to the 1"-to-2" depth recommended by many manufacturers. The result is better incorporation and better performance from your herbicides.

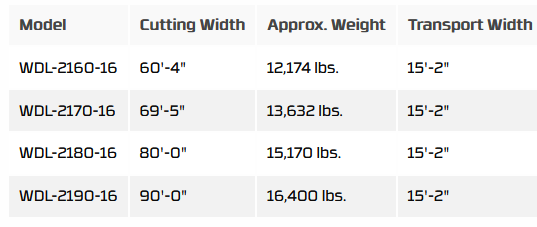

Available with 4+4, 6+6, and 8+8 bar harrow sections. Rigid dual main frame axle and radial tires available.
- Long hitch for easy turning
- Heavy-duty 1 piece frame fabricated out of rectangular tubular steel
- Excellent for leveling ridges from fall tillage
- Ideal for managing small grain straw
- Good for broadcast seeding
- Complete with 16-Bar harrow sections for superior leveling
- Fully flexible for handling heavy residue
- 20 Teeth per foot for excellent coverage
- High-carbon replaceable diamond-shaped teeth
- Two positive pitch teeth settings -50º or reverse harrow pull at 38º
