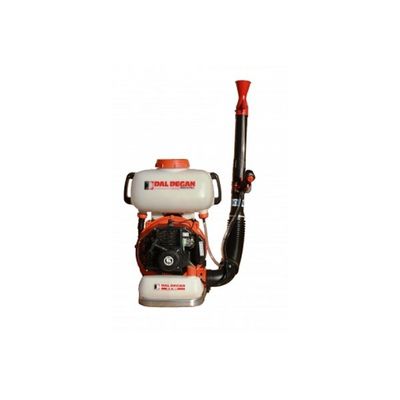

Dal Degan - Model MONSONE DK200-16L -16 Litre Motorised Backpack Atomizer and Sprayer
Combining years of experience in manufacturing of machines for agriculture with the latest in design technology, the MONSONE DK200 is born, an innovative machine which introduces new features to improve the work and safety of the operator. Backpack atomizers are utilised for pest control treatments with plant-protection products in the gardening and agriculture sectors. Thanks to the principle of low volume spraying, greater protection treatment is obtained compared to traditional treatments with manual pumps
MONSONE DK200 is a lightweight atomizer weighing only 12 kg, but with powerful performance thanks to the 3.7 kW motor. The 80 cm³ displacement engine was conceived for professional use (chromium plated cylinder, high speed bearings, membrane carburettor) and is designed with fuel saving criteria and in complete compliance with recent Euro 2 pollution regulations. A shield protection covers the engine - silencer in order to contain the noise to low levels. The 16 litre reservoir has two built in handles for transport and the large fill mouth allows easy pouring to prevent accidental spills. The 3 litre fuel mixture tank is located under the engine in order to avoid even accidental contact with hot parts of the engine. The new ergonomic joystick and multi-function command increases comfort and safety for the operator. All of the machine`s functions (throttle, liquid release, emergency stop) are grouped in a single control which also has an extreme safety feature in case of emergency. When the grip is released the throttle automatically closes, taking the engine to idle speed. There is a separate, 6-position liquid flow regulator (from 0 L/min to 1.5 L/min). The engine and the fan unit are assembled on an aluminium profile frame with vibration damping points. The output tube has a free joint which can pivot on itself to 90°, for easier storage and operation. The shoulder straps are padded for greater comfort and a cushion in water-repellent material comes standard to further dampen vibrations.
The sprayer can be completed with the following accessories:
- Transformation kit for use with powder and pellet products
- Extra long stream pump for liquids
- Reservoir vacuum pump
- Deflection grille for sloped treatments
- Tall plant spray
- ULV propeller spray
- Double spray
- Curved lance tubes
- Complies with CE standards
