Model 8-12 Tons - 2 Axles Tipping Agricultural Trailer (3 Ct.)

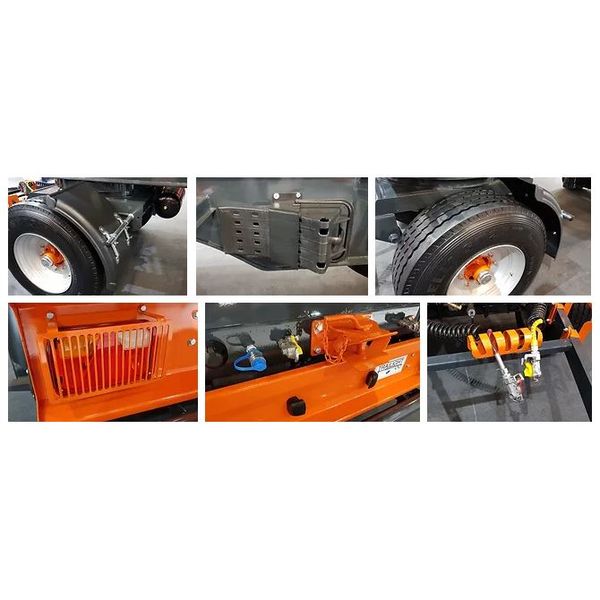

Characteristics: Among the features, it is possible to list the following main ones: Hydraulic bucket, tipping on its three facades. "Comfortable dimensions" double hinge drop sides. 2 axles, 4 wheels, FILKAR brakes, spare wheel. 24 month warranty. Pneumatic, electric and hydraulic sockets for the second trailer. Lighting system + ladder + reversing lights. Mini water tank with tap + tool box.
Most popular related searches
- Length (inside body): 500 cm
- Width (inside body): 235 cm
- Height: (Drop sides) 65 cm + (Extensions) 65 cm
- Overall length): 675 cm
- Overall width): 230 cm
- Frame: 5 mm, S52 steel, Trailer type.
- Brakes: Hydraulic (Pneumatic optional)
- Piston: 3 grades of 65 cm, 13 tonnes
- Background: 3 mm reinforced sheet.
- Drop sides / Extensions: 2.5mm
- Opening the drop sides: Automatic (3 sides)
- Boom rotation: 360° (Practical 160 °)
- Hand brake: Manual
- Damper: Leaf spring
Axles and mechanical suspension - homologation for 40 km.
