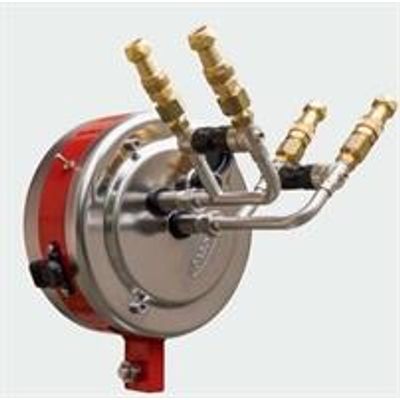

Casotti - Model Super-2 - 2 Sides Dupiget Olive/Orchard 12 V Eelectric Device
DUPIGET OLIVE/ORCHARD is a 12 V electric device with vertical oscillating jets specifically designed for treating olive tree foliage. It distributes cupric compounds, kaolin, foliage fertilisers and traditional pesticides with precision. Possibility of activating the 4-year SUPER-GUARANTEE in Italy.
Select desired nozzles:
- 4 (four) Albuz AMT18/20 - Hole Ø 2.0 mm (standard)
- 4 (four) Albuz AMT18/23 - Hole Ø 2.3 mm
- 4 (four) Albuz AMT18/18 - Hole Ø 1.8 mm
- 4 (four) Albuz AMT18/15 - Hole Ø 1.5 mm
- 4 (four) Albuz AMT18/12 - Hole Ø 1.2 mm
DUPIGET OLIVE/ORCHARD is a 12 V electric device with vertical oscillating jets, specifically designed for treating olive tree foliage.
It guarantees outstanding coverage right up to the tips, with plants up to 4 metres tall. It distributes cupric compounds, kaolin, foliage fertilisers and traditional pesticides against the olive fly and other olive diseases with precision.
Possibility of activating the 4-year SUPER-GUARANTEE in Italy.
TECHNOLOGY - Vertical oscillation and high pressure guarantee excellent penetration
The vertical oscillation of the jets and the high pressure (10/20 bar) guarantee excellent penetration in the foliage.
The oscillation angle, and consequently the working height, is adjustable according to the size of the plant, thus guaranteeing you are always on target without wasting above and below the foliage.
PERFECT SYMMETRY
The symmetry is almost perfect.
On a scale of 0 to 100, where 0% is perfection and the acceptable limit is 15%, DUPIGET OLIVE/ORCHARD has values close to 0 (DISAFA data - University of Turin, 2015).
POSSIBILITY OF WORKING ON ONE SIDE ONLY
DUPIGET OLIVE/ORCHARD works simultaneously on both sides, with the possibility of working only on the right or left only in a simple and rapid way.
PLENTY OF ADJUSTMENTS FOR PERFECT RESULTS
The adjustments are multiple:
- Working height (sprayer positioning)
- Oscillating range (angle adjustment)
- Cone or needle jet (adjustable nozzle)
- Inclination of individual nozzles
These adjustments allow you to be on target at all times, including on the tips, optimising treatment and reducing product waste as much as possible.
SIZE OF DROPLETS
Use DUPIGET OLIVE/ORCHARD with a pressure of 10 to 20 bar.
Droplets of different size are generated according to the adjustment of the jet spraying width and the operating pressure.
For example:
High pressure (20 bar) and very open spraying jets (smaller distance) generate fine droplets (greater drift).
Low pressure (10 bar) with a closed spraying jet (larger distance) generate larger droplets (lower drift).
Select the most suitable adjustments according to the product to be sprayed and the weather conditions, trying to generate the least possible drift.
CAN BE APPLIED TO ANY SYSTEM
DUPIGET OLIVE/ORCHARD can be applied to any system, whether carried or towed, fitted with a tank and high pressure pump.
RECOMMENDED PUMP
We recommend a medium or high pressure pump (minimum 20 bar, maximum 50 bar) with a minimum flow rate of 70 l/minute.
The sprayer cannot operate with low pressure pumps.
- Net weight: 9,450 kg
- Gross weight: 10,500 kg
- Dimensions: 56 x 40 x 38 cm
- Packaging dimensions: 40 x 28 x 30 cm
- Litres/ha at 5 km/h at a pressure of 10 bar: Consult the table
- Litres/min at a pressure of 10 bar: from 10 to 36.7 depending on the nozzles
- Recommended working pressure: from 10 to 20 bar
- Recommended pump: medium/high pressure, minimum flow rate of 70 litres/minute
- Voltage: 12V
- Absorption: 6 A
- Noise level: Less than 70 dB
