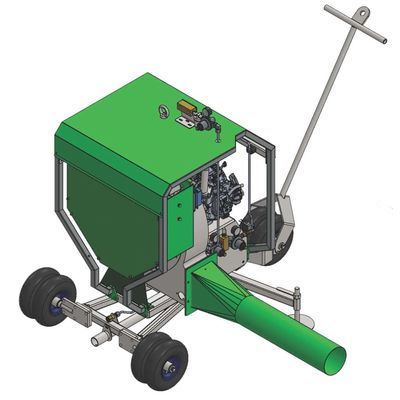

FrostGuard - Model Basic - 3 Bottle Holders Mounted Machine

Type B20:

• The B20 with the outlet just above the ground is ideal for orchards. It can also be used in some vineyards and some low crops.
• The capacity depends a lot on the density of the trees.
• It covers a surface between 0,7 and 1 hectare.
• The complete machine rotates constantly 360°.

Type B25:

• The B25 with the outlet 1 meter above the ground is ideal for most vineyards. It can also be used in low crops like strawberries.
• The capacity depends a lot on the density of the plants.
• It covers a surface between 0,7 and 1 hectare.
• The complete machine rotates constantly 360°.

The FrostGuard has a gas burner and a powerful fan, driven by petrol engine that runs on propane gas. You just have to start the engine, adjust the temperature and the FrostGuard does the rest. There is  gas to last one complete night. The outlet of the fan turns around 360° continuously, protecting an oval or round area. Machines can be spaced out in groups in relation to the shape and area to be protected. Another important advantage of the FrostGuard is that it’s easy to spread the investment over several years: you can start with 1 or 2 machines and buy more during the following years. Therefore, no big initial investment is necessary.

The working principle is, unlike all other frost protection systems, not based on raising the temperature above the critical values but on phase transition. Or in this case by controlling the forming of hoarfrost. Where our machines are used, we notice a significantly lower formation of hoarfrost. We all know that hoarfrost is the biggest enemy for the flowers and buds. But there is a way to use the enemy for protection.

The transformation of vapour into hoarfrost is called desublimation or deposition and liberates a lot of energy. This energy is transferred to its surroundings, in this case the surrounding air but above all into the leaves and flowers themselves. We know that it’s precisely the hoarfrost that normally causes most damages. This is because the ice crystals extract energy and humidity from the flower. Without protection, the layer of hoarfrost will increase and finally cause damages by dehydration and under-cooling.

But not with our system. Because we pass with a hot air stream, every 7 to 10 minutes, part of the ice evaporates (called sublimation) and the remaining ice gets energy from the passing air. The higher the humidity, the more energy that is transferred. After a few minutes, the air cools down again, the relative humidity increases and some new rime will be formed. This liberates again energy and gives again energy to the flowers. This allows us to create an optimal protection with only a fraction of the energy input that is needed by other systems.

• Better fruit set.
• Better fruit quality.
• The investment can be spread over several years.
• At very low temperatures, it’s still possible to get a complete protection by putting more machines closer together.
• After start up, works automatically.
• Can also be used in greenhouses, plastic tunnels.
• Ideal for smaller plots but also for bigger plots.
• Easy to move, mobile, not a fixed installation.
• Easy to start up, easy to shut down.
• Multifunctional: can be used almost everywhere, for many applications and crops.
• Can be equipped with an Auto Start System. (only Revolution)
