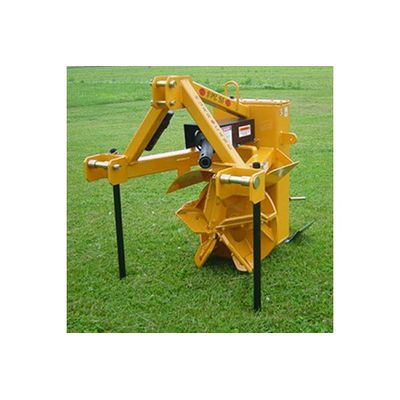

Hurricane Ditcher - Model 3-PT 26 -3-Point Ditcher
The model 3-PT 26 3-Point ditcher is designed to provide an economical way to make surface drainage ditches using your own farm tractor. Like all Hurricane 3-Point models, the 3-PT 26 is equipped with parking stands for easy hook-up and disconnection. It can be used with Cat II or III quick hitch by moving the bushings to the desired location.
Most popular related searches
- Operates with 70-140 HP tractor
- Equipped with jack stand for easy hook-up and disconnection
- Contains 2 shear bolts in the PTO should an immovable object be stuck
- Contains a shear bolt in the wheel to protect it against damage when larger objects are hit
- Dragplate gives machine stability and prevents gouging; includes heavy-duty ratchet jack
- Gearbox consists of large shafts, heavy-duty sprockets and bearings, and double 80 roller chain, all enclosed and running in an oil bath; use the external idler adjustment for chain tensioning to dramatically increase the life of your equipment
- Optional deflector shield allows operator to control soil if it needs to be contained for a diversion, small terrace, or simply can’t be thrown
- Optional ripper tooth to loosen debris and oil for smoother machine operation; designed for running in extremely hard or rocky conditions
- Recommended HP Speed : 70 HP to 140 HP
- Power Take-Off (PTO) : Series 55, 1000 RPM with shear bolt protection
- 1-3/8-21 spline or 1-3/4-20 spline
- Hitch Type : Cat II or III quick hitch
- Impeller Wheel : 26" 5-paddle impeller with shear bolt
- Rear Shoe (dragplate) : Includes heavy-duty ratchet jack
- Approximate shipping weight : 1,000-1,250 lbs.
- Gearbox : 5/16″ material with double 80 roller chain, oil bath, external idler tension adjustment
- Depth of cut : Up to 10" in a single pass; up to 26" in multiple passes
- Width of cut : 26" at 13" deep
- Optional Add Ons :
- Ripper tooth
- Deflector shield
- GPS
