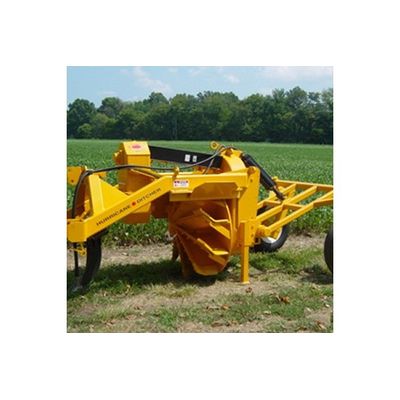

Hurricane Ditcher - Model 3-PT 42 -3-Point Ditcher

First manufactured in 2006, the 3-PT 42 Ditcher is designed to work in extremely trashy conditions such as sod or stalks or hard, dry conditions.

Most popular related searches

Operates with 125-225 HP tractor
Equipped with jack stand for easy hook-up and disconnection
Designed to work in trashy conditions (sod, stalks, etc.) or hard, dry conditions with the standard ripper tooth
Working speed 2 to 4 MPH
1″ to 10″ depth of cut per pass
27″ maximum depth
42″ 9-paddle impeller wheel spreads soil evenly 40′ to 60′ to the left side
Gearbox consists of large shafts, heavy-duty sprockets and bearings, and double 80 roller chain, all enclosed and running in an oil bath; use the external idler adjustment for chain tensioning to dramatically increase the life of your equipment
Shear bolt protection in PTO, impeller wheel, and ripper tooth
Includes ripper tooth to loosen debris for smoother machine operation; designed for running in extremely hard or rocky conditions
Easily connect lateral ditches to main ditch
Standard rotating single rear tail wheel for better grade accuracy
Optional rotating double tail wheel assembly
Optional terracing shield to contain and position soil

Recommended HP Speed : 125-225 HP
Power Take-Off (PTO) : Series 55, 1000 RPM with shear bolt protection
1-3/4-20 spline
Hitch Type : Cat II or III quick hitch
Impeller Wheel : 42″ 9-paddle impeller wheel with 9 heat treated cutting edges and 9 hard-surfaced paddles
Ratchet Jack : Includes heavy-duty ratchet jack
Approximate shipping weight : 3,700-4,200 lbs
Gearbox : 1/2″ material with double 80 roller chain, oil bath, external idler tension adjustment
5/16″ material with double 80 roller chain, oil bath, external idler tension adjustment
Depth of cut : Up to 10″ in a single pass; up to 27″ in multiple passes
Optional Add Ons :
