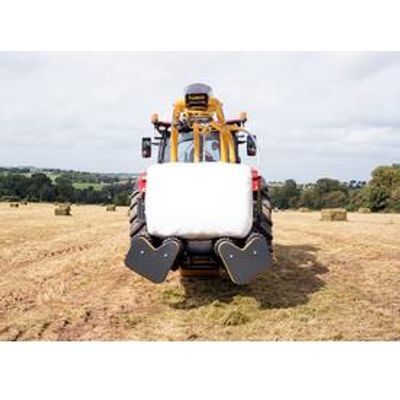

Tanco - Model Q Series - 3-Point Mounted Square and Round Bale Wrapper

Building on over 15 years of experience in linkage mounted wrappers, the Q Series is faster and more user friendly than the competing trailed wrappers. It is an extremely maneuverable machine that requires little to no input from the driver.

The Q Series which takes its name from Quadrangle, as in four sides, emphasising its focus of square bale wrapping. The Q Series has two models within the range. The Q200-V has twin film dispenser (Q200-V) and the Q300-V has three film dispenser (Q300-V) options. Multiple dispensers Is made possible by the unique patented folding wrap arm mechanism developed by TANCO and delivers reliable speed. Up to 65 and 80 bales per hour, respectively.

The Q Series’ versatility cannot be underestimated with the ability to wrap any round or square bale on the market. Settings for different bale sizes can be saved within the controller; meaning when you move from a 120 x 140 twin-pack bale to a 80 x 70, this can be done by simply selecting the bale size and with a minimum of adjustment the Q Series will adjust roller position and wrapping speeds to ensure the correct number of layers and overlap.

• RDS Expert Plus Controller
• Auto-Load automatically engages loading sequence without operator input
• Variable speed control automatically adjusts dispenser speed for more accurate plastic film coverage on all size of bales
• Automatic bale levelling and indexing
  Bales are automatically levelled for Off-Load
• Load Sensing Kit
• Telescopic Cut & Start
• Settings for various bale sizes are stored for quick adjustment when moving between bale sizes
• Tanco Dual Stretch Aluminium Dispenser with 55% & 70% stretch options built in

• Radio Remote Control
• 6 and 4.5 metre extension cable
• Universal Adaptor allows for wide range of brackets to be mounted for use on telehandlers
