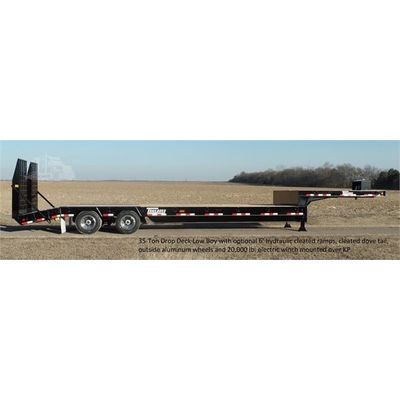

Trailboss - Model KW41DTA -35-Ton Drop Deck Low Boy Trailers
FRAMEWORK: Main Frame: 24" wide flange I-Beam 55# per ft. Cross Members: 8" I-Beam 10# per ft. Side Rails: 12" channel 20.7# per ft.
UNDERCARRIAGE:
Tandem 25,000# oil bath axles
12 1/4" x 7 1/2" brakes, both axles
8-hole Budd wheels (8) Unimount
9700 Hutch Suspension
235/75R17.5 16-ply radial tires (8)
Air brakes (Spring/Maxi brakes on rear axle)
DIMENSIONS:
Bed Length: 30` including 4` dove tail
Overall Width: 8 1/2` Height: 35 3/4" (unloaded)
6` x 36" hydraulic ramps (wet line)
11` neck with deck on top
Overall Length: 41`
MISCELLANEOUS:
Twin 2-speed jacks
DOT sealed beam lights (LED)
Mud flaps
Protected wiring system
Stake pockets and D-rings along each side
2" hardwood decking
Hydraulic power supplied by truck
Color: Industrial Yellow (options available)
*Some options may be shown
