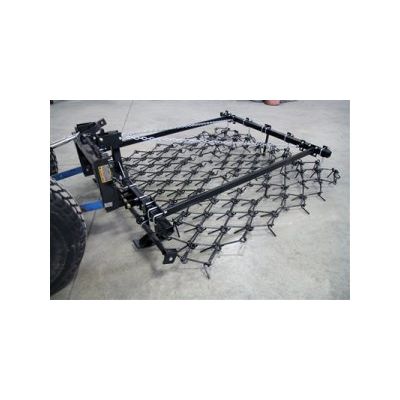

Wingfield - 3pt MaxiLift Harrow
The Wingfield 3 point MaxiLift chain harrow utilizes a fully-encompassing, box tube frame to offer total control over the harrow. With the frame, you can back into corners, shake out loose material, control the number/pressure of the tines on the ground, and easily transport the harrow. Use the 3 point MaxiLift chain harrow to maintain a horse arena, groom a driveway, break up manure in a pasture, prepare a seedbed for a food plot, reseed, incorporate chemical/fertilizer, and much more!
You won`t find a better 3pt chain harrow for sale on the market today because of these features:A drawn high-carbon, spring-steel harrow tine that can outlast the competition by up to three times!
- Harrow tines are computer bent to ensure even wear and consistent performance
- Rings in lieu of hooks to prevent unhooking, binding, and premature wear
- Fully encompassing box tube framework is constructed of 2 1/2" beams and is and built to handle rough conditions
- The 3pt Lift is setup as either a Cat #1 or #2 and is quick-hitch enabled
- Harrow can be pulled in the aggressive mode (tines standing up), less aggressive mode (tines laying flat), upside down (tines pointing in the air), or a combination between the front and rear section - rough up in aggressive mode with the front section, and smooth out with the rear section either in the less aggressive mode or upside down
- Front skids act as both stands and protect the pull pipe from objects during use
- Harrow mat comes in a single piece mat to eliminate unhooking and providing consistent ground contact
- Harrow mat is our fullest length harrow (7 1/2`) which allows the unit to work the ground in a single pass
The Wingfield 3 point MaxiLift chain harrow is an ideal tool behind a small/mid-sized tractor. The 3pt framework gives the operator full control in using and transporting the harrow. No matter if you are grooming a gravel lot or incorporating fertilizer, the Wingfield 3pt MaxiLift can fulfill your harrowing needs.
Remember: You control the harrow on a frame, a drag harrow controls you.
- Width: 7` 2" - 12` 0"
- Length/Depth: 8` 0"
- Weight: 484 lbs. - 680 lbs.
- Frame Beams: 2 1/2" x 2 1/2" x 3/16" x 72" front beam, 2 1/2" x 2 1/2" x 1/8" x 72" rear beam
- Frame Verticals: 1" x 2 1/2" x 1/8" x 72" beams
- Hitch: Cat #1 and Cat #2, quick-hitch ready
- Drawbar: 76" - 124" wide - 1 1/4" Schedule 80 drawbar pipe (front and rear)
- Optional Chain/Clevis: 10` - 12` long - 5/16" high-test chain, clevis accepts a 1/2" pin
- Tine: Computer bent 1/2" diameter high-carbon, drawn spring steel tine
- Number of tines: 102 - 174
- Points of contact: 204 - 348
