Linsinger FALCON -Â 4-Side Plate Edge Milling Machine
The Falcon 4-Side Plate Edge Milling Machine by Linsinger represents an advanced solution in milling technology, enabling comprehensive edge preparation on all four sides of a plate with a single clamping setup. It employs the well-established Linsinger Thick Chip Milling Technology, which allows for high feed and output rates while minimizing tooling expenses. The machine's gantry milling design, enhanced by magnetic clamping units, affords notable flexibility, handling even intricate plate shapes like trapezoidal and curved forms suitable for industries such as vessel construction and wind towers. For challenging materials, including stainless steels and super-duplex grades, specialized clamping tables and optional lubricant spray nozzles ensure efficient machining. The machine accommodates plate thicknesses ranging from 10mm to 200mm and provides significant torque capabilities, reaching up to 6000 Nm to support high feed rates. It supports various profile types such as N, V, X, Y, and J, ensuring adaptability to different production requirements.

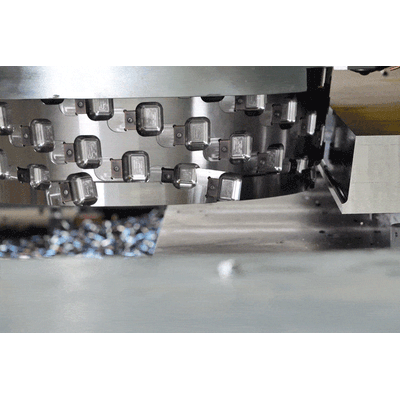

LINSINGER’s latest plate edge milling machine generation PFM FALCON enables edge preparation on all 4 sides (2 longitudinal + 2 cross sides) of a plate in one clamping. Our proven “LINSINGER Thick Chip Milling Technology” ensures high feed and output rates at lowest possible tooling cost. Due to the gantry milling concept and the magnetic clamping units, highest flexibility is given and even complex plate shapes such as trapezoidal and curved plates (e.g. for the vessel and wind tower industry) can be processed.
For non-magnetic and complex materials such as Stainless Steel, High alloyed steels, Duplex and Super-Duplex grades, special clamping tables are available. Optional minimum quantity lubricant spray nozzles ensure economic machining even of these materials.
The machine covers easily plates with wall thicknesses from 10mm up to 200mm (0,4 – 8”).
The high-power reserves of the machine ensure maximum torque of 6000 Nm and high feed rates even when heavy plates are milled. Various profile types (N/V/X/Y/J) can be realized. The proven copying function of the milling unit ensures a constant web-flow along the plate edge, even on heavily bent plates of high thickness.
- High feed rates and low tool cost with “Linsinger Thick Chip Milling Technology”
- All 4 sides of a plate are machined in one clamping
- Automatic machine setup for each plate dimension
- Different profiles on each edge possible
- Precise and fast welded seam preparation
- Various kinds of profiles available (V/X/Y/J…)
- Automatic tool changer function available
- Milling of various plate geometries (trapezodial, curved) possible
- Cycle time 20 min
- 12,000 x 3,000 mm (40ft x 10ft) t = 50 mm (2″)
- Carbon Steel
