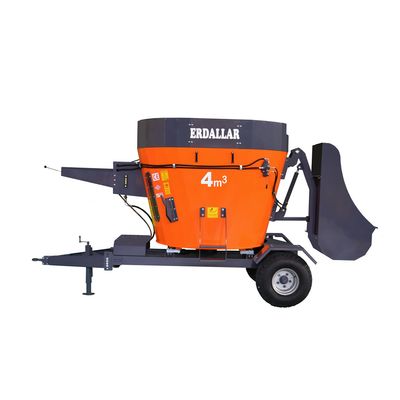

ERDALLAR - Model MAK-4-11 -4M3 VERTICAL FEED MIXER
It has the capacity to take care of 30 - 40 cattle or 350 - 400 sheep&goats. It forms a homogeneous mixture with 3 - 4 bales. Self-lubricated and pumped, with viewing window and loading. There are vertical helix 9 cutting blade. There are 4m3 optional scale and band.Most popular related searches
Technical Features
Lenght:4702 mm
Width:1900 mm
Height:2420 mm
Weight:1380 kg
Tyre Size -
Conveyor Dimensions:570 x 750
Material:Steel Pipe
Material:Type ST37
Clamsell Bucket:Standard Equipment
Self - Lubricated:Standard Equipment
Lubricated from Tractor -
Transfer System:Shaft ve Reducter
Pull Type:Pull Type
RPM:540 d/dk
Required Power:35-55 HP
Number of Blades:8
Blade Type:Triangle
Helix Diameter:1350 mm
Helix Rotation Cycle:540/17
Helix Pipe Thickness:7 mm
Helix Leaf Thickness:7 mm
Side Sheet Thickness:4mm
Base Sheet Thickness:10mm
Digital Weighing System:Optional
Electric Motor:Optional
Conveyor Belt:Optional
