Frishine - 6-Bar Cattle Yard Panels with Gates

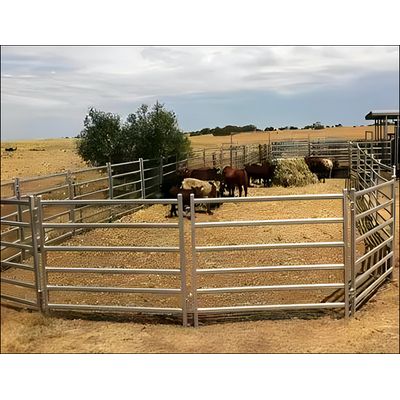

6-bar cattle yard panels, 1.8 x 2.1 meters, are efficient livestock enclosures. Made from sturdy steel bars with a galvanized finish, the panels are rust resisting and corrosion resisting. The horizontal bars are evenly spaced, offering visibility and strong containment to prevent cattle escape. Mounted on robust posts and connected by secure fastening systems, the panels allow for swift assembly and disassembly. The bottom bar close to the ground deters smaller animals from going underneath, and the top bar is placed to deter cattle from jumping over. This versatile system can create safe grazing areas, as well as spaces for veterinary and cattle sorting.
- Height and Length: Standard 6-bar cattle yard panels are 1.8 meter high, to contain cattle or horses. The length commonly measures 2.1 meters, providing ample space between posts to ensure stability and security.
- Bar Spacing: Bar spacing is designed to prevent cattle from getting their heads stuck, usual gap between the bars is approximately 200-300mm.
- Tube Dimensions: The steel tubes have a diameter of 32-42mm with a thickness ranging from 1.6mm to 2.0mm.
- Adjustable Sizes: 6-bar cattle yard panels have a custom length range from 2.0 to 3.0 meters, while heights from 1.5 to 2.0 meters as needed.
- Bar Diameter and Thickness: Diameter of the tubes can be increased for heavier-duty applications, and the thickness can be adjusted.
- Gate: Panels can be customized to include built-in gates, for the passage of livestock or vehicles. Gate dimensions range from 1.0 to 1.5 meters in width.
6-bar corral panels are popular heavy enclosures for farming needs.
Frishine supplies 6 bar, 5 bar, 4 bar and other corral panel types to meet the requirements of modern agriculture.
