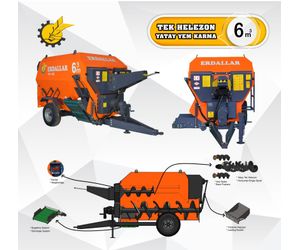

ERDALLAR - Model MAK-6-21 -6M3 HORIZONTAL FEED MIXER WITH SINGLE AUGER
It has the capacity to take care of 50 - 70 cattle or 600 - 650 small cattle. It forms a homogeneous mixture with 8 - 11 bales. It has a belt system, bucket, self-lubricating and pumped. It has single horizontal auger. Optional weighing system is available.Most popular related searches
Lenght:4700 mm
Width:2175 mm
Height:2325 mm
Weight:2600 kg
Tyre Size -
Conveyor Dimensions:570 x 750
Material:Steel Pipe
Material:Type ST37
Clamsell Bucket:Standard
Self - Lubricated:Standard
Lubricated from Tractor -
Electrical System -
Transfer System:Shaft and Reducter
Pull Type:Pull Type
RPM:540 d/dk
Required Power:35-55 HP
Blade Number:78
Blade Type:Axe and Mixer
Helix Diameter:680 mm
Helix Rotation Cycle:540/17
Helix Pipe Thickness:10 mm ST52
Helix Leaf Thickness:15 mm ST52
Side Sheet Thickness:5mm
Base Sheet Thickness:8mm
