Royal Packing - 7-Layer Corrugated Paperboard Production Line Machine

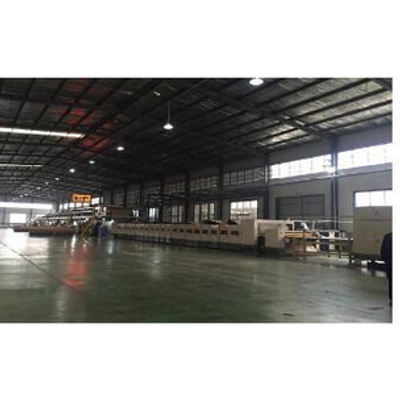

ROYAL PACKING is professional producer for Corrugated cardboard production line in China. We can produce the 3 ply, 5 ply and 7 ply corrugated cardboard production line, Widths from 1000 to 2500mm, production speeds from 60 to 250 meters/min. We can offer reasonable project to meet customers’ requirements.

• adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
• brake adjustable adopts multipoint braking system.
• every stand matched two sets paper car , and  they can paper on the both sides at the same time.

Technical parameters:

• The range of clamping paper: MAX1600mm MIN800mm
• Clamping diameters: MAX?1500mm MIN?350mm
• Main shaft diameter of paper holder: ?242mm
• Gas source work pressure(Mpa): 0.4---0.8Mpa

Hydraulic system parameters:

1. Work pressure (Mpa):16---18Mpa
2. Lifting hydraulic cylinder: ?100×440mm
3. Clamping hydraulic cylinder: ?63×1300m
4. Hydraulic station motor power: 3KW --380V -- 50Hz
5. Solenoid valve voltage: 220V  50 Hz
