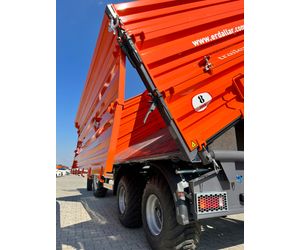

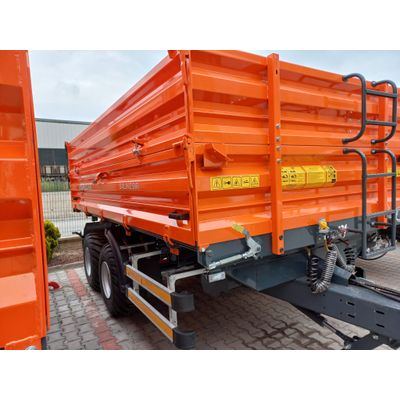

ERDALLAR - Model TND-80-23 - 8 TON TANDEM AXLE 3 SIDES TIPPING TRAILER

REQUIRED TRACTOR POWER: KW/HP 44/66

CASE DIMENSIONS (L/W/H): 4000 / 2300 / 1000

SIDE WALL HEIGHT MM: 500 / 500

BASE&WALL THICKNESS: 4 / 2,5 MM

CHASIS FLOOR HEIGHT FROM THE GROUND: 950 MM

SUSPENSION: PARABOLIC SPRINGS

TOTAL TECHNICAL DIMENSIONS (L/W/H): 5580 / 2420 / 2200

TYRE SIZE: 400/60-15.5

TIRE TRACK WIDTH (OUTSIDE TO OUT): 1850 MM

ADDITIONAL OPTIONS:

HYDRAULIC JACK

HYDRAULIC BRAKE

AIR BRAKE

AIR & HYDRAULIC COMBINED AIR SYSTEM

AIR SYSTEM HANDBRAKE

LOAD INDEXED AIR BRAKE ADJUSTMENT SYSTEM

HYDRAULIC CONNECTION FOR REAR TRAILER

BRAKE CONNECTION FOR REAR TRAILER

ELECTRICAL SOCKET FOR REAR TRAILER

BACK HITCH

PLASTIC WHEEL CHOCK

3. ADDITIONAL 30 CM

3. ADDITIONAL 50 CM

SOAP PLASTIC WATER TANK

BICYCLE RACK

POSITION LAMPS

LANE TRACKING LIGHTS

FRONT FENDERS

Ø170MM GRAIN DISCHARGE SCREW WITH LIFT

BRENDA

SPARE TIRE
