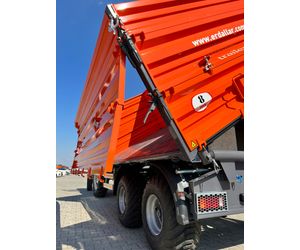

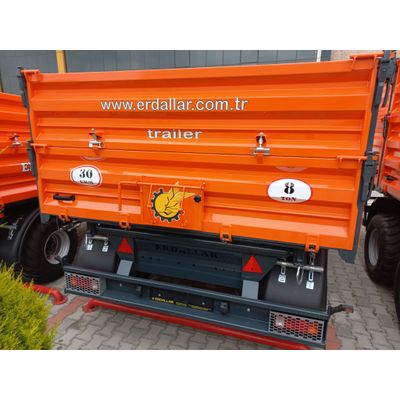

ERDALLAR - Model TND-80-23 -8 TON TANDEM AXLE 3 SIDES TIPPING TRAILER

Tandem axle 3 sides tipping trailer with 8 ton loading capacity / EU type approval certificate and certificate of conformity are available

Most popular related searches

REQUIRED TRACTOR POWER: KW/HP 44/66

CASE DIMENSIONS (L/W/H): 4000 / 2300 / 1000

SIDE WALL HEIGHT MM: 500 / 500

BASE&WALL THICKNESS: 4 / 2,5 MM

CHASIS FLOOR HEIGHT FROM THE GROUND: 950 MM

SUSPENSION: PARABOLIC SPRINGS

TOTAL TECHNICAL DIMENSIONS (L/W/H): 5580 / 2420 / 2200

TYRE SIZE: 400/60-15.5

TIRE TRACK WIDTH (OUTSIDE TO OUT): 1850 MM

Technical Details
