Notch Manufacturing Inc.

NotchModel FW84 -84” Feeder Wagons

SHARE

Unique trust design sides. Outer and inner frame is fastened to the top of outside edge of pan for maximum strength and cleaning ability. Fifth wheel type steering allow for 90˚ turning. Quick hitch tongue and heavy duty pole latch that allows pole to be latched with wheels at any angle. Grease fittings at all pivot points & hubs. Bottom of pan clear of obstacles for easy cleaning. Optional rear gate available. Optional full or half galvanized side panels available.

Most popular related searches
  • Available Size: 16`, 20`, & 24`
  • Pan Material: 10 gauge alloy steel, Pan Depth: 13"
  • Top rails: 4"x 2" rectangle tubing, Slant bars: 1½" square tubing
  • 2" king pin with bushings, 2" spindle (1¾" on the 16`)
  • 6 bolt hubs with grease fittings
  • Full length rear axle
  • 16"x 6" wheels standard (15"x 6" wheels on the 16`), other wheels available

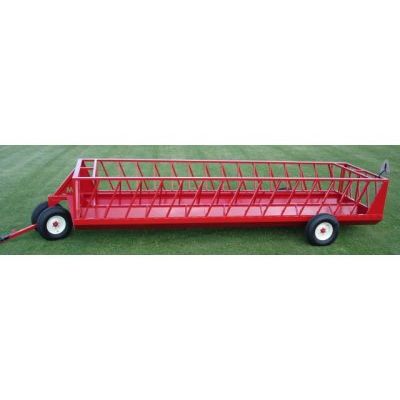

  • (pictured without side panels)
