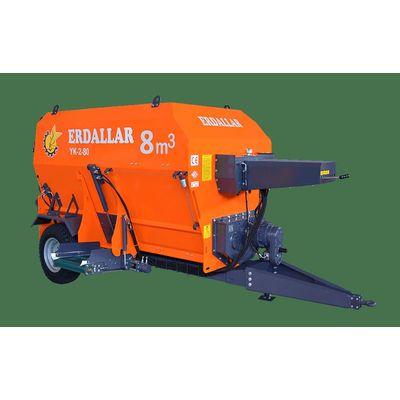

ERDALLAR - Model MAK-8-22 - 8M3 HORIZONTAL FEED MIXER WITH DOUBLE AUGER
It has the capacity to take care of 70 - 85 cattle or 750 - 800 small cattle. It forms a homogeneous mixture with 10 - 12 bales. It has a belt system, bucket, self-lubricating and pumped. It has double horizontal auger. Optional weighing system is available.Most popular related searches
Length:5043 mm
Width:2255 mm
Height:2250 mm
Weight:3750 kg
Tyre Size -
Conveyor Dimensions:570 x 750
Material:Steel Pipe
Material:Type ST37
Pre EmbtidBand:Standard
2.Side Discharge Tape -
Clamsell Bucket:Standard
Self - Lubricated:Standard
Lubricated from Tractor -
Electrical System -
Transfer System:Shaft ve Reducter
Pull Type:Pull Type
RPM:540 d/dk
Required Power:55-75 HP
Blade Number:134
Blade Type:Triangle
Helix Diameter:420 mm
Helix Rotation Cycle:540/17
Helix Pipe Thickness:10 mm ST52
Helix Leaf Thickness:15 mm ST52
Side Sheet Thickness:5mm
Base Sheet Thickness:10 mm
