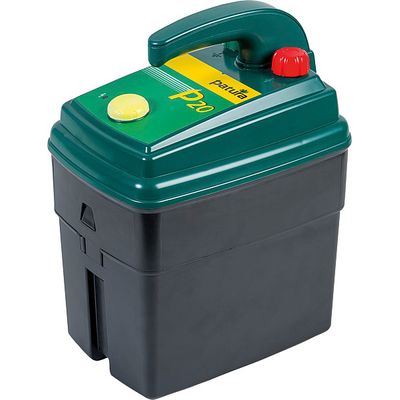

Patura - Model P 20 - 9 Volt Electric Fencing Energisers

For optimal function we recommend the use of alkaline batteries for all 9 V energisers

Ref.

• Specifications: P 20
• Packaging unit: (qty 1)
• Stored energy (joules): 0.22
• Max. output energy (joules): 0.17
• No- load voltage (volts): 8400
• Voltage at 500 ohms (volts): 2600
• Max. power consumption at 9 V (mA): 24
• Supply voltage (volts): 9 – 12
• Max. fence length in km (multiple wires):
• no vegetation: 1.4
• little vegetation: 0.5
• Single indicator
• 3-step fence and battery monitors
• Connection to 9 and 12 V (*with separate 12 V cable):
• Switch for 2 speeds
• Night save mode
• Switch for 2 power levels
• Deep discharge protection
• Minimum length of earth stake (metres): 0.25
• Garanty: 3 year
