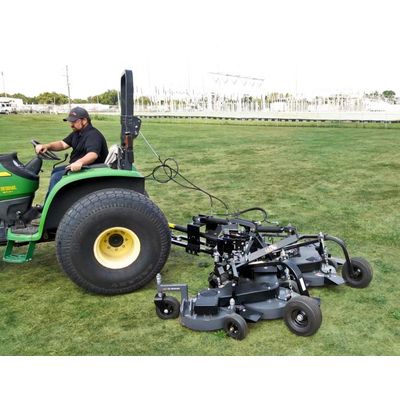

Lastec - Model XR500 - 96" Pull Behind Finish Mower with 3 Point Hitch Mount
Combining a 96” width of cut with five 21” flex decks, the XR500 finish mower cuts with the accuracy of five small push mowers at the speed and production of an 96" wide area mower. Built in the USA, the XR500 pull behind mower is tens of thousands of dollars less compared to a self-contained mower and fits the production needs of golf courses, sports turf professionals, and commercial landscapers.
96" Flex Deck Pull Behind Finish Mower with 3 Point Hitch Mount
- 96" cutting width
- Five 21" flex decks with 360° of float and up to 24° of total up/down motion
- Quick Height Adjustments in the Field, No-tool deck height adjustment from 1-3/4" to 4-3/4"
- All Deck Wheels are Semi-Solid, to Eliminate Flat Tires
- All decks are constructed from 7ga. 3/16” (4.76 mm) plate with 3/8” x 1/2” (9.52 mm x 12.7 mm) solid steel bar leading edges
Premium Cut Quality
Every Lastec mower features three, five, or seven 21” or 25” independently flexing decks that include up to 24° of total up/down motion for the premium cut quality of several small push mowers in even the most challenging contours and valleys. In addition, Lastec’s center decks include a pivot in the center capable of up to 3° of up/down motion.
- XR500 96" WIDTH OF CUT
- 029288 Mulch Baffle Kit (mulch blades not included)
- P128 High-Lift Blade (Standard)
- P322 Gator Mulching Blade
- P246 Low-Lift Blade
- 063246 Ultra Low-Lift Blade
- 048898 Anti-Scalp Blade Disc
- 076894 Anti-Scalp Kit
Tractor Requirements:
- 30hp (22.37 kw) & Category 1, 3 point hitch
- Tractor PTO Speed: 540 RPM
- Transport Width: 96” (243.8 cm)
- Deck Height Range: 1-3/4" to 4-3/4" (44.45 mm - 120.65 mm)
- Deck Configuration: Five 21” (533.4 mm) 4” (101.6 mm) deep, fully articulating
- Warranty: 2 years parts/1 year labor/ limited lifetime on urethane bushings & bushing hardware
Dimensions
- Length 88" (2235.2mm)
- Distance Behind Tractor 7.50" (2.286mm)
- Width (mowing) 114" (2895.6mm)
- Width (transport) 102" (2590.8mm)
- Weight: 982 lbs (445.4 kg)
Cutting Deck System
- Cutting Width: 96” (335.28 cm)
- Blades 21"
- Deck Segments 5
- Height of Cut Range 1-3/4" to 4-3/4" (44.45mm X 120.65 mm)
- Height Adjustment No tools required
- Acres Per Hour 7.27 (assumes 10% overlap, no stops, and average speed of 8mph)
- Transport Lift Type n/a
- Deck Castor Wheels 9 (No Flats)
- Deck Thickness 3/16 7ga.
- Deck Leading Edge 1/2"x1/4"
- Blade Length 21" (53.3cm)
- Articulation p/m 12 degrees
- Height of Cut Change- Timing 5 min.
- Height of Cut Change- Tools required None
- Height of Cut Change- Person`s Required 1Min.
- Height of Cut 1-3/4" (44.45 mm)
- Max Height of Cut 4-3/4 (120.65 mm)
- Weight 982lbs. (445.4kg)
- # of Decks 7
- Distance Behind Tractor 7-1/2"(2.286 mm)
- Number of Grass chutes 7
- Discharge Capability Rear, Mulch(discharge)
- Bearing/Spindles 5
- Pulleys (Cast or Split) Cast Steel
- Rows of fixed wheels 1
- Hydraulic Cylinders 0
- Hydraulic Connections 0
- Hydraulic Manifold 0
- Pulleys 8
- Blades 7 CW
- Number of Belts 6
- Size of Belts 2
- 3" Back-Bend Idlers 0
- 1/4 Turn Belt Twists 0
- Spring Loaded Idlers 1
- PTO`s 1
- Carrier Bearings 0
- Grease Points 52
- Height When Raised 15" (381mm)
