Proactive Environmental Products International LLC (PEPI)
About

Abyss Slimline - Model P-10385 -12 Volt Plastic Pump

SHARE

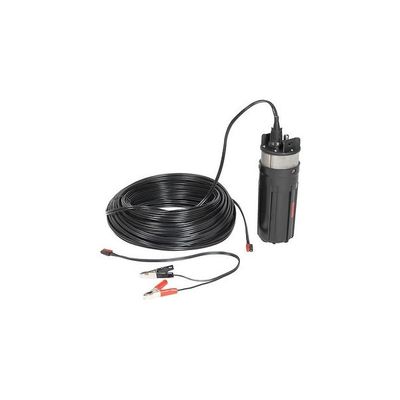

The Engineered Plastic 12-volt Abyss Slimline® pump is capable of pumping up to 220 feet depth to water (DTW)* by simply connecting the Abyss Slimline® to a 12-volt deep cycle battery. Its reliable design and low amp consumption makes it the ideal pump for remediation pump and treat system. The Abyss Slimline® pump can run continuous, 24 hours a day, 7 days a week for remote situations when the pump needs to run when no technician is present. The Engineered Plastic Abyss Slimline® can even be used for low flow sampling (Fractional Flow®). Now you can sample all the way down to 40 mLs per minute with the Low Flow Sampling Controller. Need to get even lower?? How about 10 mLs per minute in conjunction with the Low Flow Sampling Control Valve.



Most popular related searches
12V plastic pump
Simplify and Expedite Your Next Sampling Event!
  • The Abyss Slimline® can operate under harsher conditions with higher turbidity. It can even run in oily, sandy liquid.
  • The Abyss Slimline® can run continuously 24 hours a day, 7 days a week. It can even run dry 24 hours a day, 7 days a week!!
  • The Abyss Slimline® has a 3,000-hour motor life!
  • The Abyss Slimline® has a sleek outside that minimizes well hang-ups that easily fits into 4-inch wells or larger.
  • The Abyss Slimline® fits easily into a schedule 80, 4 inch well.
  • The Abyss Slimline® is widely used as a remediation pump for groundwater pump and treat situations.
  • The Abyss Slimline® is a very reliable and economical pump that provides a great bang for your buck!
 The Abyss Slimline® is simple to make it a solar pump! Simply hook up your desired solar panel arrangement to the 80 Amp Solar Charger and then to a deep cycle marine battery(ies) for a turnkey solar pumping system that will last for years and years! The Abyss Slimline® can also be hooked up to Proactive Environmental Products WeatherProof 110/220 Volt Step Down Transformer which can turn any high voltage situation into a safe low voltage pump. The Abyss Slimline® can also run off the 50 amp gas powered 12 Volt Crusader®. This Gas driven Generator can produce 50 continuous amps of 12-volt power. No batteries are needed! * Depth to water

When Using Low Flow Sampling Controller, Pro Solar Charger #1, Pro Transformer #1, Pro Transformer #2, Pro Transformer #3 Or The Pro Controller #1

  • WATT CONSUMPTION (MAX): 60 WATTS (MAX)
  • DC VOLT RECOMMENDATION: 12-15 DC (direct current) At Source
  • AMP CONSUMPTION (MAX): 4 AMPS
  • MEASUREMENTS: LENGTH 12"/ DIAMETER: 3.73"
  • REQUIRED TUBING: 3/8" ID or 1/2" ID TUBING
  • SUPPLIED WITH: 230 FEET OF HEAVY DUTY 10 GAUGE WIRE, QUICK DISCONNECT
  • PLUG & BATTERY CLAMPS
  • SEAL AND VALVE CONSTRUCTION: VITON (IS STANDARD UNLESS REQUESTED OTHERWISE)

When Using Abyss Solar Direct with LD and Float Switch

  • WATT CONSUMPTION (MAX): 75 WATTS (MAX)
  • DC VOLT RECOMMENDATION: 12-15 DC (direct current) At Source
  • AMP CONSUMPTION (MAX): 5 AMPS
  • MEASUREMENTS: LENGTH 12"/ DIAMETER: 3.73"
  • REQUIRED TUBING: 3/8" ID or 1/2" ID TUBING
  • SUPPLIED WITH: 230 FEET OF HEAVY DUTY 10 GAUGE WIRE, QUICK DISCONNECT
  • PLUG & BATTERY CLAMPS
  • SEAL AND VALVE CONSTRUCTION: VITON (IS STANDARD UNLESS REQUESTED OTHERWISE)

When Using Abyss Transformer #4 Or Abyss Solar Charger #1

  • WATT CONSUMPTION (MAX): 75 WATTS (MAX)
  • DC VOLT RECOMMENDATION: 12-15 DC (direct current) At Source
  • AMP CONSUMPTION (MAX): 5 AMPS
  • MEASUREMENTS: LENGTH 12"/ DIAMETER: 3.73"
  • REQUIRED TUBING: 3/8" ID or 1/2" ID TUBING
  • SUPPLIED WITH: 230 FEET OF HEAVY DUTY 10 GAUGE WIRE, QUICK DISCONNECT
  •  PLUG & BATTERY CLAMPS
  • SEAL AND VALVE CONSTRUCTION: VITON (IS STANDARD UNLESS REQUESTED OTHERWISE)

When Using Abyss Booster #1 Or Abyss LD With Booster

  • WATT CONSUMPTION (MAX): 193.5 WATTS (MAX)
  • DC VOLT RECOMMENDATION: 12-15 DC (direct current) At Source
  • AMP CONSUMPTION (MAX): 12.9 AMPS
  • MEASUREMENTS: LENGTH 12"/ DIAMETER: 3.73"
  • REQUIRED TUBING: 3/8" ID or 1/2" ID TUBING
  • SUPPLIED WITH: 230 FEET OF HEAVY DUTY 10 GAUGE WIRE, QUICK DISCONNECT
  •  PLUG & BATTERY CLAMPS
  • SEAL AND VALVE CONSTRUCTION: VITON (IS STANDARD UNLESS REQUESTED OTHERWISE)
