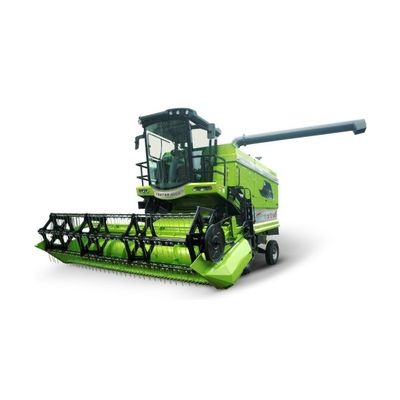

Kartar - Model 4000 -AC Cabin Combine Harvester
Our advance KARTAR-4000 technology is a groundbreaking development in the agricultural machinery industries worldwide. These are widely appreciated for their custom design and diverse functionality.
Most popular related searches
agriculture machine industry
grain tank
harvesting combine
agriculture machine
thresher
agriculture industry
harvesting system
industrial agriculture
Engine
- Type Of Engine: Ashok Leyland H6 (H-SERIES )101 H.P. @ 2200 R.P.M.
- No. Of Cylinders: 6
- Cooling System: Water Cooled
Cutter Bar
- Width: 3650 / 3695 mm
- Height Adjustment: Hydraulically
- Cutting Height Min.: 200 mm
- Cutting Height Max.: 800 mm
- No. of Rows: 07/05
- Spacing from Row: 460- 610 mm
Thresher Drum
- Dia of Drum: 600 mm
- Length of Drum: 1260 mm
- Speed of Drum: 535 to 1210 rpm
- Adjustment: Mechanically
- No. of Rasp Bars: 8
Straw Walkers
- No. of Straw Walkers: 5
- Total Area: 46565 sq. cm.
- Concave
- Clearance Between: 16 to 39 mm
- Concave & Thresher: 3 to 16 mm
- Drum at Intel at Cutlet Adjustment: Mechanically
Cleaning
- Area: 26962 sq. cm.
- Adjustment: Mechanically
Capacity
- Fuel Tank: 380 Lts.
- Grain Tank: 2.10 m3
- Hyd. Oil Tank: 35 Lts.
Dimensions
- Length: 8000 mm
- Width: 4520 mm
- Min.Ground Clearance: 460 mm
- Weight: 9500 Kgs.(Apprx.)
Product Details
- color: parrot green
- Cutter: Dual Cutter Bar
- Cutter Bar Width: 14 Feet / 6 Row
- Grain Tank Capacity: 20 Qunital
- Power: 101 HP
- Brand: Kartar
- Model: delux
