GEZE - Activestop Timber, Surface-Mounted
FromGEZE GmbH
Door damper on both sides for interior wooden swing doors. Door opening angle with variable adjustment from 80°-140°. Can be used for right and left hand doors without conversion. Soft opening and closing of doors up to max. 45 kg leaf weight. Gentle stopping, quiet closing and comfortable keeping open of doors. Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture. Secure holding of the door when open, meaning no door is stopper necessary. Opening and latching speed when installed can be set via a valve. Integrated safety valve offers overload protection.
Most popular related searches
- Right and left timber single-action doors indoors
- Room doors with high access convenience
- Single-action doors up to 1100 mm leaf width
- Surface-mounted installation, for retrofitting on existing doors
- Barrier-free access in accordance with DIN 18040-2

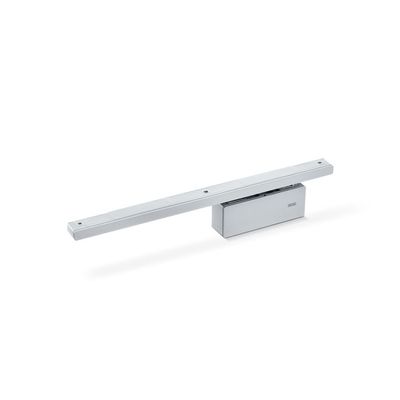

GEZE ActiveStop timber, surface-mounted
Depth: 34 mm
Height: 68 mm
Leaf weight (max.): 45 kg
Leaf width (max.): 1100 mm
Category of door: flush-mounted, rebated
Identical design for DIN left and DIN right: Yes
Installation type: surface-mounted
Adjustable draw-in damper: Yes, via valve
Draw-in damper in direction of closing movement from: 25 °
Free swing area: 25 ° - 60 °
Draw-in damper in direction of opening movement from: 60 °
Adjustable door opening angle: Yes, stepless
Hold-open position adjustable: 80 ° - 140 °
Safety valve againts overload: Yes
