Bron - Model HS-III - Add-on Static Plow

FromBron A Division of Roberts Welding and Fabricating Ltd.

BRON Offsetting Static Add-On Plows are available for Power Units from 170hp-500hp. These robust fully offsetting plows are designed for the installation of fibre optics, copper cable and flexible pipe at working depths ranging from 42"(106cm) to 78"(198cm).

Most popular related searches

Operating Weight: 17,029 lbs (7,724 kg)
Length of Plow Assembly without Chute: 192" (4,876 mm)
Maximum Depth: 78" (1,981 mm)
Offset Range Left & Right of Centre: 72" (1,828 mm)
Approximate Shank Clearance Transport Position: 20" (508 mm) Blade fully retracted
Recommended Tractor Horsepower: 320 HP-600 HP (235 kW-441 kW)

Bron - Model HS-III - Add-on Static Plow

Specification

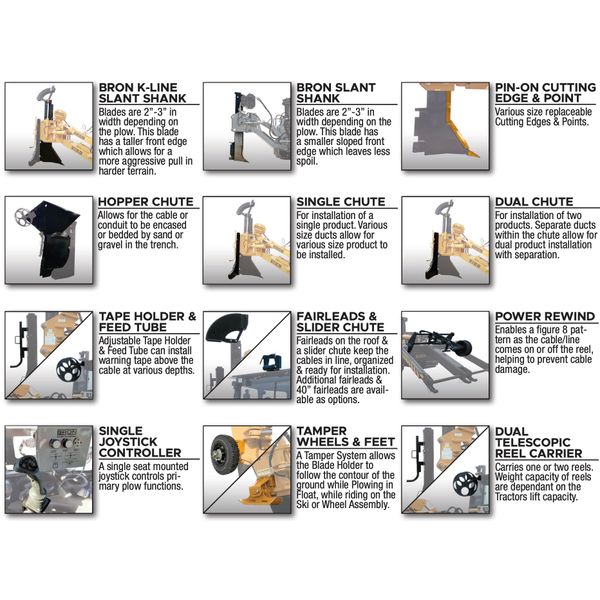

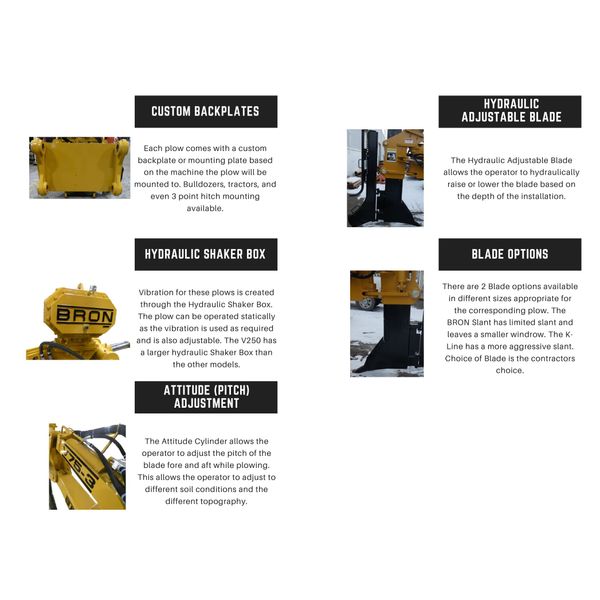

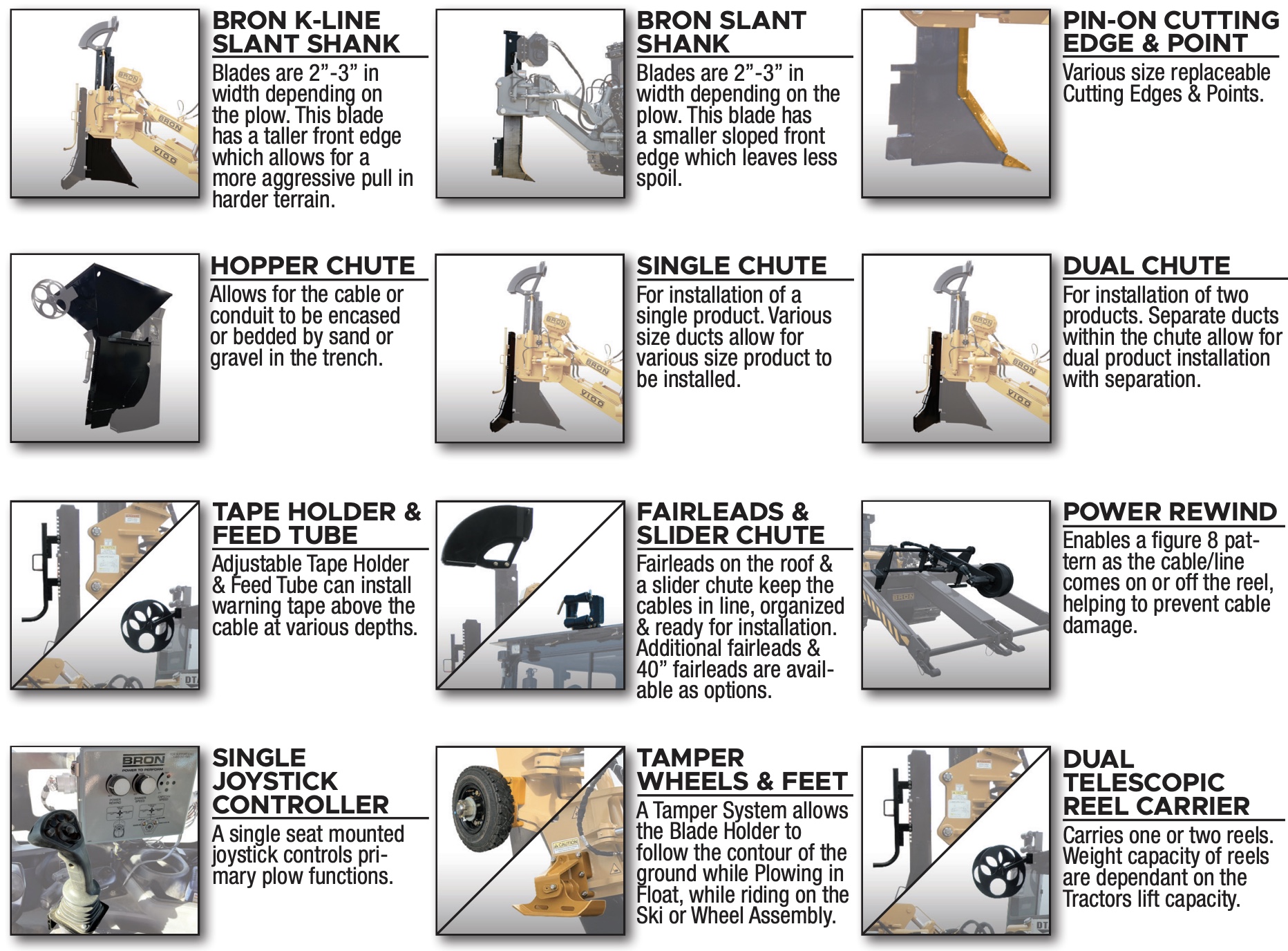

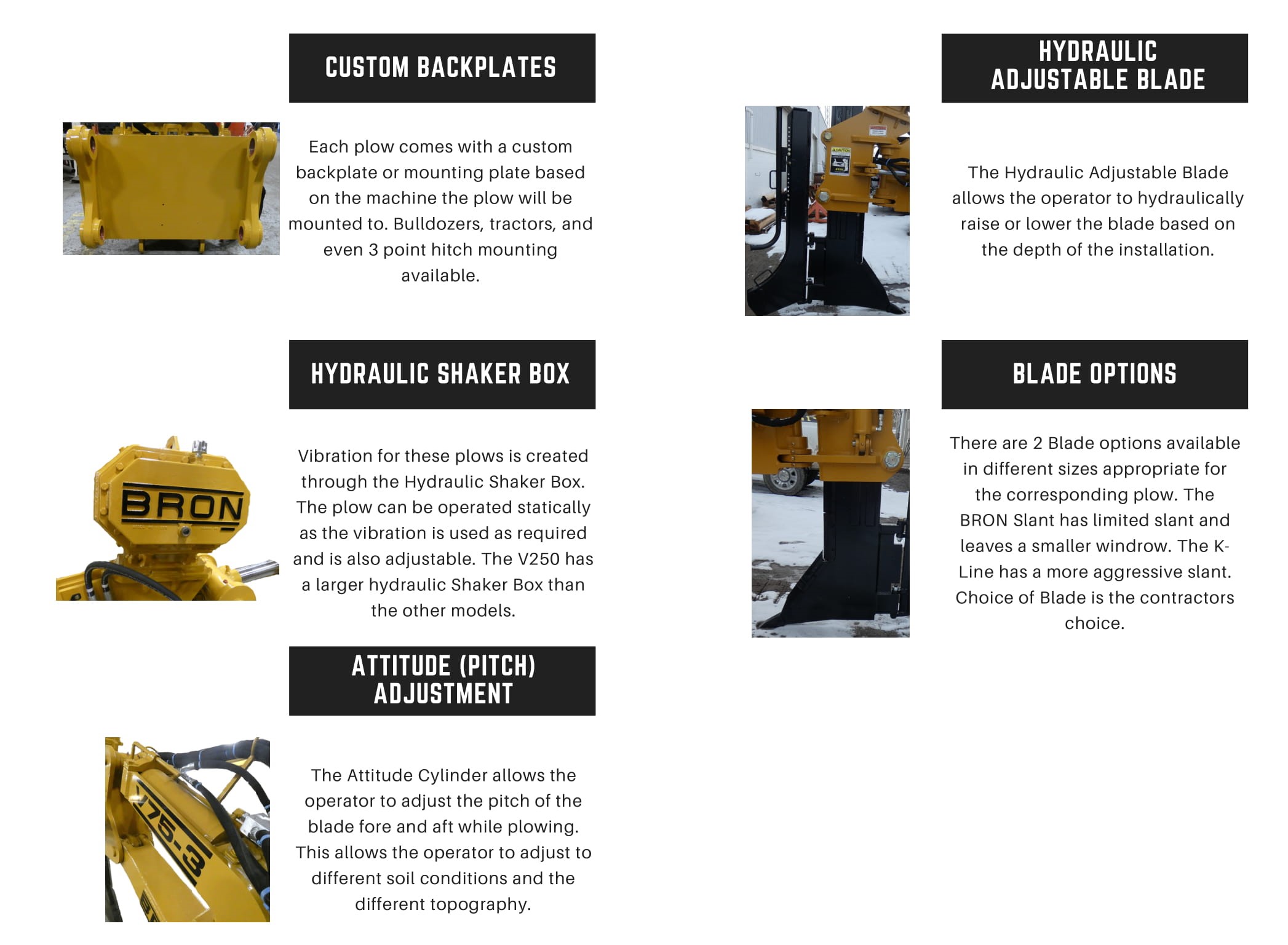

Features

Options
