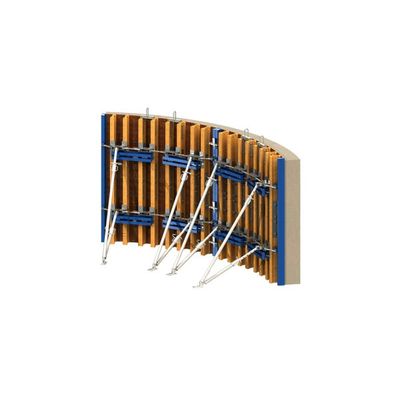

Variant - Model RINGFORM -Adjustable Circular Formwork

Load-bearing capacity

• 50 kN/m2 permitted pressure of fresh concrete
• High quality film faced plywood with thickness of 21 mm. Film weight 240 g/m2

Easy to use

• Having only 6 standard panel provides much easier planning and forming.
• All the connectors and accessories are easily fixed into the slots and quickly tighten, consequently forming time is efficient and maximized.
• No need for extra holes in plywood. The same anchor hole’s used throughout a project.
• Can be easily connected to the framed formwork Varimax.
• Radii can be continuously adjusted from a radius of 3.5 m upward, simply by turning spindles.

Cost-effective:

• The system elements are pre-assembled and are ready for use simply by setting the desired radius with the adjusting spindles;
• Installation of pre-assembled units minimizes use of a crane;
• Smaller quantities are needed, as it adapts effortlessly to any layout;
• High number of use cycles means lower follow-up expenses;
• Reduction of expenses by means of restoration and cleaning possibilities;
• High quality of concrete surface minimize finishing work.

Safe use:

• Accessories such as — bracing platforms, bracing struts etc... make for save and easier handling of the system.

Fast working:

• Radii are set easily—simply by turning spindles;
• Can easily be combined with Varimax, Varimid, Vertex 60;
• There is only one type connection device (Adjustable clamp).
