AlphatrackerModel 1P - Advanced Agrivoltaic Tracker System

SHARE

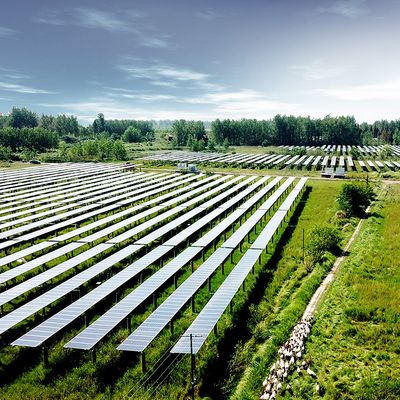

The Advanced Agrivoltaic tracker system developed by Alphatracker offers the possibility of working under solar panels using standard agricultural equipment. Our Advanced Agrivoltaic tracker stands out for its ability to adapt to any type of crop, offering flexibility and versatility in application. In addition, its design allows excellent adaptability to the terrain, facilitating installation and maintenance. An additional benefit is the significant reduction of the need for excavation, simplifying the process and minimizing the impact on the land.

Most popular related searches
  • Material : S355JR, S275JR y S350GD
  • Superficial coating : HDG, ZM310
  • Foundation : Direct drive, Predrilling, Spinnaker type
  • Screws : Zinc-Niquel, HDG, Others
  • Modules fixing : Screws, clamps or Rivet
  • Terrain adaptation : The structure design are based in the terrain features
  • [Tilt : ± 65° (possibility of increasing to ±90°)
  • Calculation and design : According to Client specification and the terrain use
  • Maximum height of the Tracker : 6 meters (approximately)
  • Structural Pitch : According to the ubication and technical specification
  • Module compatibility : Adaptable to any type of module
  • Axis orientation : N-S
  • Module orientation : E-0
  • Poles distance N-S : 11 meters maximum
  • Poles distance E-0 : 14 meters maximum
  • Tracker power supply : Self/grid powered or string parasite
  • Communication between tracker : Zigbee Wireless communication (Modbus RTU)
  • Slewing unit : DC motor
