Galcon

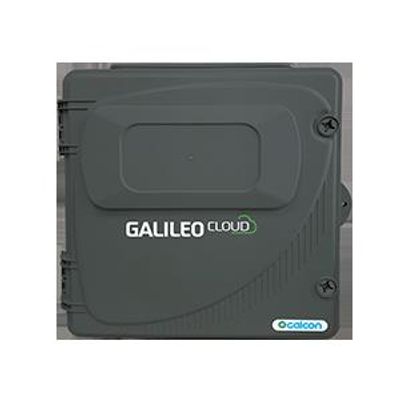

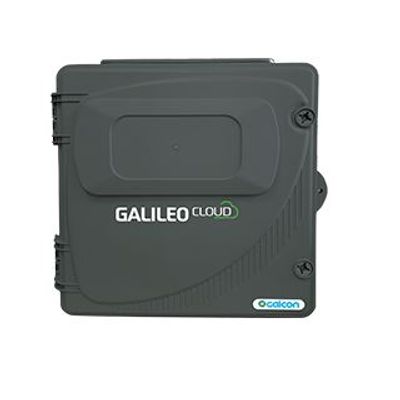

Galcon - Model Galileo Cloud WEX - Advanced Cloud-Based Controller for Agriculture
FromGalcon
Control: Control of pump housings, filters, fertilizers, valves. Suitable for application: Agriculture. Ports: 4 brackets for input/output cards and 4 brackets for protection cards.
Most popular related searches
irrigation program
irrigation fertigation
fertilizer machine
irrigation line
irrigation system
irrigation
fertilizer
cloud-based agriculture
fertilizer use
irrigation control
- Management & control of irrigation and fertilization
- Operation of fertilizing machines with EC/pH control
- Operation of remote terminal units - radio or wireline
- Flexibility - ideal for a range of applications
- Modular system
- The app allows you to control up to 50 main irrigation lines, and thus create a hierarchical network
- Gradually open/close irrigation capacity to prevent high pressure buildup
- Limiting the flow rate to the piping in case of bottleneck. After programming the limiting flow rate, the system prevents the actual flow rate from automatically exceeding the limit
- 200 irrigation devices that collect data related to water/time and up to 7 different fertilizers
- 100 water meters that distribute the amount and flow rate of water measured by the water meter between the active valves. This unique capability allows the use of a single water meter for many valves, while simultaneously operating each valve individually
- Up to 40 local fertilizer pumps use a simple action program that is part of the irrigation program
- Up to 8 fertilizer centers allow up to 6 fertilizer pumps to be operated, with pH/EC control
- Five pump housings thanks to a special program. This allows easy operation of a combination of up to 5 water pumps and up to a total of 20 water pumps
- Up to 20 virtual water meters by displaying the total flow rate and accumulation of water meters. Each virtual water meter can also display the flow rate balance at a certain point, allowing the use of the element called Burst Control (Net Protection)
- Up to 20 input conditions for starting, delaying or ending irrigation. If an element contains a condition input and/or a sensor (for example, a pressure transducer), it can suspend the hinge pipe to which it is connected
- Up to 4 mixing nodes for controlling the mixture of the water dilution. For example, if the result of mixing drainage or salt water with fresh water complies with the required EC
- Up to 200 irrigation programs with up to 50 valves per program
AC model
- I/O Cards:
24 outputs, 16 analogue, 8/16 digital inputs/outputs - 220V/50Hz or 110V/60Hz
- 24V outputs, 4-20mA analog inputs
- Activation of radio end units (W, WEX, WEXX models)
DC model
- I/O Cards:
8 digital inputs / 8 outputs / 16 analog - 12V DC power supply, for operation of DC Latch solenoids
- Activation of radio end units (W Model)
- Connection to solar panel and rechargeable battery
