Ag-Nav - Model P-500 - GPS Receiver
From Accessories

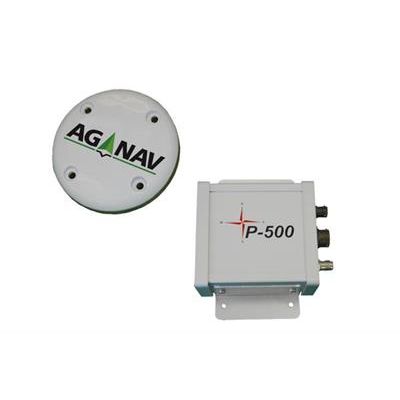

The P-500 GPS Receiver comes with an all-purpose GPS antenna and electronic processor. The antenna comes with a Federal Aviation Administration (FAA) Airworthiness certificate. The low profile antenna is housed in water proof sealed casing, which makes it ideal for use in any location.
Product Details
Coverage:The receiver contains a GPS engine with SBAS corrections including WAAS, EGNOS, MSAS, CDGPS, and OmniSTAR VBS (optional). With GPS+GLONASS option, the P-500 enhances satellite availability and positioning, making it suitable for even applications in terrain areas.
The P-500 is highly versatile and manufactured to suit any application where GPS is required such as air, ground, and sea navigation. The unit is lightweight and can be mounted on any transportation vehicle with relative ease, making the unit ideal for any of these applications.
The P-500 is specifically designed to interface with any guidance product that requires GPS aid and accuracy. Whatever the application, the P-500 Engine can adapt. See what application you can find for it!
Specification
- GPS and GPS+GLONASS (optional) Satellite Tracking
- SBAS Corrections (WAAS, EGNOS, MSAS)
- CDGPS & OmniStar VBS (L-Band)
- Position Updates: 5, 10, 20, 50 Hz Options
- Operating Temp: -40C to +85C (-40 to 185F)
- Input Voltage: 12-28 VDC
- Low power consumption
- Low profile antenna
- RS232/485, CAN, and USB protocol options
- Data smoothing function
- 3 status display LEDs: Satellites, GPS Corr, Data Tx
- Rugged metal connectors
