JXCT - Agricultural Control Host-Smart Agricultural Control System

SHARE

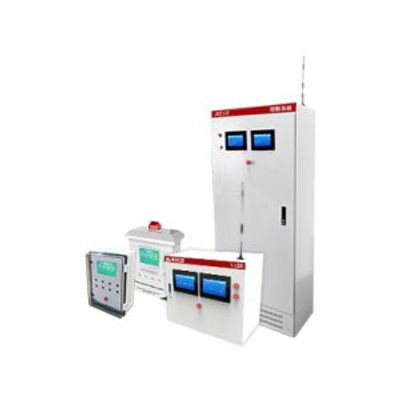

Agricultural control host is a new type of intelligent agricultural control system, which can set alarm points, and when it reaches the alarm value.Agricultural control hostcan control a variety of linkage equipment, such as curtain roller, film roller, circulating fan, temperature controller, internal / external sunshade, wet curtain water pump and irrigation. It can realize that each channel can be controlled locally, or remotely by computer and mobile phone.

Most popular related searches
agriculture control system
agriculture system
advanced agriculture
fertilizer machine
automatic irrigation
greenhouse automation
irrigation system
irrigation system controller
smart agriculture
smart agriculture system
  1. Save manpower and material resources: The mobile phone can operate solenoid valve, shutter rolling machine, skylight and other equipment with one click, which is convenient, time-saving and labor-saving, without a lot of manual intervention.
  2. Timing movement: Time node can be set to start regularly. For example: at 9 a.m., the water and fertilizer machine can be set for regular irrigation.
  3. Linkage: When faced with the situation of high production management intensity, the linkage function of the system can simultaneously open a variety of functions, such as a series of greenhouse automatic irrigation and so on.
  4. Positive inversion: It is through the three-phase electric commutation, so as to control the positive and negative rotation of the shutter machine, or realize the ventilation and cooling function of the circulating fan.
  5. Delayed start: For example, when the shutter machine is running, a certain time point must be set to stop running slowly until it is closed, so as to protect the circuit and prevent the danger of the circuit.
  • Parameter name: Parameter value
  • Power supply: 12V-DC (JXZJ-Z1 series), 220V-AC (other series)
  • Product power consumption: ≤30W
  • Number of control channels: ≤48
  • Number of sensing channels: ≤32 groups
  • Relay allowable current: ≤ 10A
  • Contactor allowable current: ≤90A (optional according to configuration)
  • Total allowable current: ≤300A (optional according to configuration)
  • Surge protection voltage: 385VAC
  • Total allowable current: ≤300A (optional according to configuration)
  • Protection level: 1.8KV/5KA
  • Working temperature: .-20-70°C
  • Working humidity: 0-95%RH non-condensing
