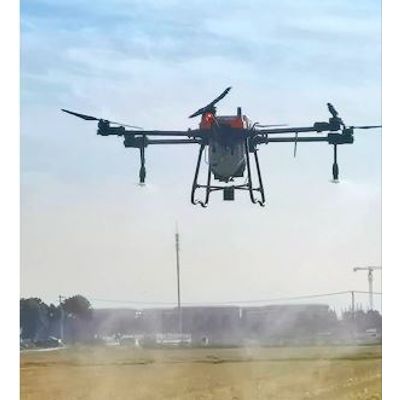

Huida Tech - Model HD540Pro -Agricultural Drone
HD540PRO agricultural UAV adopts six-rotor design, stable flight, easy to control, 40L spraying load, and supports 60L (50KG) spreading box at the same time, improving work efficiency.
Atomized Spraying System with Adjustable Particle Size
Equipped with four centrifugal nozzles, the HD540PRO spray is fine and uniform, and the atomized particle size ranges from 50 microns to 500 microns. The maximum spray width is 10M, the maximum flow rate is 14L/MIN.
No Need to Wait for Work, Fast Charging
30,000mah, 18S large-capacity smart battery, supports 9-minute fast charging (charge from 30% to 90%), cycle operation without waiting.
360° Rotating Radar
360° rotating radar, efficient obstacle avoidance, support terrain following function.
Front and Rear Dual FPV Cameras
Visible work, safer, no delay transmission.
Night Flight Lighting System
High brightness searchlight, work day and night.
HD540PRO PARAMETERS
- Architecture Layout: Six-axis layout
- The Maximum Length: 3315mm (propeller unfolded length)
- Overall Dimension: length x width x height
- 2028mm×1922mm×862mm (Arm unfolded state, propeller folded state)
- (The height from ground to propeller 862mm)
- (The height from the ground to the top of the tank is 940mm)
- (The height from the ground to the top of the spreader is 968mm)
- Capacity Of Water Tank: 40L
- Capacity Of Spreader: 60L
- Weight Of Machine: 48KG (Including battery, water tank, spreader)
HD540PRO FLIGHT PARAMETERS
- Hovering Accuracy: RTK: Horizontal ±10cm,
- Vertical ±10cm Radar: ±0.1m
- Spraying Full-Load Hovering: 8.5min
- Spreading Full-Load Hovering: 7min
- No-Load Hovering: 18min
- Maximum Operation E?ciency: 22 ha/h
- Ranging Accuracy Of Ground Simulating Radar: 0.1m
- Fixed Height Range: 1-30m
- Obstacle Avoidance Perception Range: 1-30m
- Graphic Transmission: >1.5KM
- Maximum Take-o? Weight: Spray Maximum Take-Off Weight: 88kg
- Spreading Maximum Take-Off Weight: 95 Kg
HD540PRO SPRAYING SYSTEM
- Nozzle Type: Centrifugal nozzle
- Number Of Nozzles: 2 nozzles
- Max. Flow: 13.5L/min
- Maximum Spray Amplitude: 11m
HD540PRO GENERATOR
- Nominal Power: 220V/8000W (direct connection to generator)
- 220V/2200W (direct connection to mains)
- Tank Capacity: 38L
- Reference Fuel Consumption: 500ml/kWh
HD540PRO SMART BATTERY
- Battery Weight: 13.3KG
- Power Battery: 68.4V/30000mAh 2.1kwh
Charging Duration: Lithium battery 20%-95% about 13min
