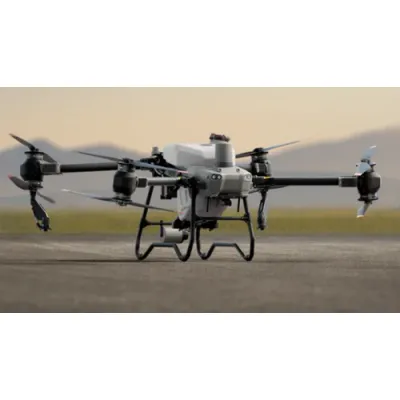

RAPTOR DJI - Model Agras T50 -Agricultural Drone Kit
The DJI Agras T50 is an advanced agricultural drone designed specifically to enhance efficiency in spraying and spreading tasks. With a high payload capacity and coaxial twin rotor design, it can efficiently handle up to 50 liters with the optional Orchard Kit. Its dual atomization system ensures even spraying, while its massive coverage offers up to 52.6 acres per hour. The drone's sophisticated safety features include binocular vision and dual radar for omnidirectional obstacle sensing. This system provides high-level efficiency with up-to-date technology including magnetic drive impeller pumps capable of 6.34 gallons per minute. The Agras T50 also supports up to four rotary style nozzles, enhancing precision spraying. With its robust remote control capabilities, precise mapping coverage, and superior terrain following technology, the Agras T50 defines modern agricultural drone utility by integrating advanced engineering for optimal productivity.
- Revolutionized Agricultural Drone Operation brought by DJI Agras T50
High Capacity | Awesome Efficiency | Rotary Atomization
- T50 40L (upgradeable to 50L with optional Orchard Kit)
- Coaxial Twin Rotor = Massive Increase in Payload
- Dual Atomization for Even Spraying
- Enhanced Spreading Efficiency for Superior Performance
- Omnidirectional Obstacle Sensing
- Mapping, Spraying and Spreading ALL in One
- Fully Enhance Remote Control for smoother and faster mapping
- Robustly Tested for Ultimate Reliability
- Ultra Fast Charging
- DJI Agras Intelligent Cloud
Spray System:
- 10.5-gallon liquid tank designed to empty in under 3 minutes
- Estimated 36-foot swath with pattern consistency across the entire swath
- Up to four rotary style nozzles spray through centrifugal force rather than pressure, making
- adjusting droplet size as easy as clicking a button
- Magnetic drive impeller pump with up to 6.34 gal/min (4 nozzles) and 4.23 gal/min (2
- nozzles)
- Live level meter, in addition to on-board scales, provide readings of the remaining volume of
- liquid in tank signaling time remaining in field
Spreader System:
- 19.8-gallon spreader tank designed to hold 110 lbs of granular material
- Get higher spreading efficiency with the spiral channel spinner disk
- A jam-free, high-torque spreading motor
Efficiency & Operations:
- Improved terrain following ability with up to 50° in spraying/spreading missions
- 2 sets of binocular vision and 2 omnidirctional radars helping to achieve maximum efficiency
- -Terrain following and obstacle bypassing
- 12 mega-pixel camera with adjustable angles for a smooth and crisp view
- 4 aircraft image transmission antennas
- Complete mapping capability
