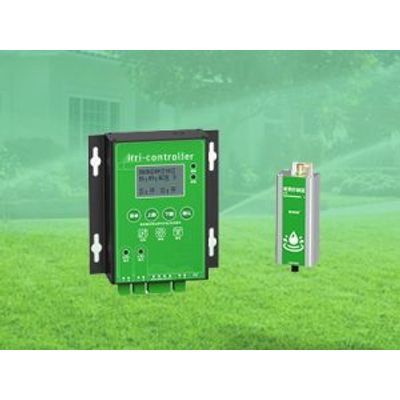

JXCT - Agricultural Household Irrigation Controller

1. Set a scheduled task The irrigation controller sends control instructions remotely through local control. The equipment will automatically irrigate according to the set procedure. It can be connected with two solenoid valves and set up two groups of irrigation procedures.
2. Irrigation duration/start watering time can be set The irrigation controller can set the start time of irrigation on the same day and the duration of irrigation at that time according to the irrigation demand.
3. Power failure storage function Data is not lost after power failure, and programs are saved by the storage function. There is no need to reconfigure work tasks after power failure.
4. the screen backlight is controllable Turn on automatically, 40S out, can also be controlled by pressing the button.
5. Built-in clock chip The irrigation controller can set automatic travel times on the program or equipment for user convenience.
6. Irrigation controller With inspection and retransmission mechanism;
7. Irrigation controller support equipment running state change alarm; Notify users of data changes in time.
8. The control system can monitor the working temperature of the equipment in real time; Prevent aging caused by excessive temperature.
9. The shell of the equipment has waterproof, explosion-proof functions, and strong anti-interference ability;
10. The device has beautiful structure, easy installation, simple configuration and strong usability.

The wireless irrigation controller is suitable for various outdoor environmental monitoring, such as: agriculture, forestry, water conservancy, lawn, environmental protection, meteorological department, cultural relics conservation and other fields;

• Parameter name: Parameter value
• Power supply: 12V-24V DC
• Operating temperature: ?-20~60°C
• Maximum power consumption: 0.4W
• Working humidity: 15~90% (no condensation)
• Output signal: 4G
• Power consumption: 0.15 W or less
• Response time: ≤1s
• Working pressure: 0.9-1.1 ATM
