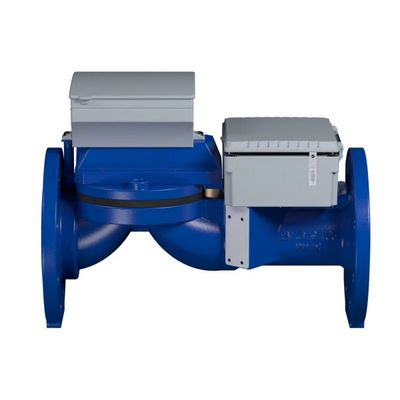

ATLAS - Model UTM80 and UTM100 -Agricultural Irrigation Meter

SHARE

Model Selection for Agricultural Water Meter Purchase; When purchasing an agricultural water meter, the amount of flow in the area where the meter will be used should be considered. The model with the most suitable DN (meter inner diameter) diameter for the flow rate should be selected.

Most popular related searches
irrigation meter
agriculture water
irrigation
irrigation mechanization
agriculture irrigation
agriculture purchasing
  • Ultrasonic measurement method gives more accurate results than classical mechanic heat meter measurement
  • The product does not have any moving part so that has a longer life than classical mechanic heat meters
  • Automatic switching off remotely or when it is out of credit via integrated cut valve
  • Managing credit by Prepaid Software and Card Reading System (Works with RFID card.)
  • Low energy usage provides long-term battery life up to 10 years
  • Maximum applicable pressure (MAP) is 16bar

  • Ultrasonic meters do not have a rotating or moving propeller or similar mechanism. water pipe Considering the flow rate inside, even the smallest parts can damage the plastic parts found in mechanical meters. like sandpaper over time The parts damage it and over time make it impossible to measure or make incorrect measurements.
  • Ultrasonic meters do not count air passage. All types of mechanical meters with plastic impellers pass air like water. counter
  • Ultrasonic meters are very easy to install and are not affected by inclined mounting (No Moving Parts). Mechanical Since the meters contain plastic propellers rotating on bearings, inclined mounting will damage the meter over time and measurement first installed It is not possible from now on
  • Since ultrasonic meters do not have shafts, bearings or propellers, they are not affected by debris.
  • Ultrasonic meters create very low pressure loss. (It reduces the energy consumption caused by the pump.) Mechanical meters, on the other hand, use relatively higher pressure due to plastic propellers rotated by the flow of water. creates loss.
  • Ultrasonic meters have no risk of clogging. It is in the shape of a straight pipe. Any indentations or protrusions There is no. Mechanical counters are affected by algae and organic waste, the shafts cannot rotate, and the fan fronts become damaged. gets clogged. water over time does not allow passage
  • Ultrasonic meters do not show consumption with air when there is no flow.
  • Ultrasonic meters are not affected by temperature fluctuations.
  • Ultrasonic meters have very high precision. It is produced at the rate of R315. Mechanical irrigation meters It is generally R25, the maximum cannot exceed R160.
  • Ultrasonic meters have a battery life of more than 10 years. Lifespan of mechanical meters used in irrigation maximum 2 years.
  • It stores monthly consumption data of the past 12 months in its memory.

  • Maximum applicable pressure (MAP) is 16bar
  • When the battery cover is opened, it closes with an alarm.
  • When the counter cover is opened, it closes with an alarm.
  • It gives an alarm when the gaskets is opened, there is a penalty switch.
  • The LCD screen has led lighting.
  • The product can measure at low flow status
  • User and technician card can be defined.
  • Management software can be developed.
  • During battery replacement, all old information is kept in its memory.

Communication and Interfaces
  • Low energy usage provides long-term battery life up to 10 years
  • The last 12 months consumption indexes can be displayed.
Metrological Features
  • Accuracy class is 2
  • Security class is IP54
