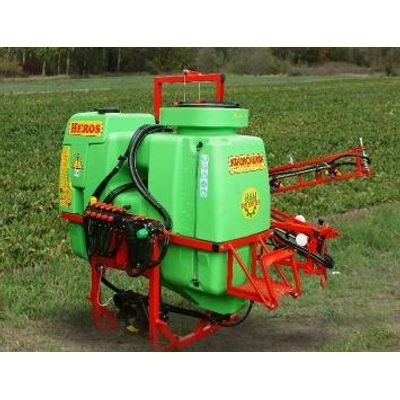

Heros - Model 600 -Agricultural Mounted Sprayers
Tank of 600 l capacity made of polythene. Three tanks hidden in one solid: main tank, clean water tank and hand-washing tank.
Most popular related searches
- Field boom of width 12 m with height regulation by means of crab winch, divided into 5 sections, after hitting an obstacle it leans backwards and forwards protecting nozzles and nozzleholders from damage
- Automatic stabilization of the field boom
- Single nozzleholders KRUKOWIAK with anti-drip valves placed on the acidproof tube every 50 cm
- TeeJet TT 110-03 slotted nozzles
- 3-section pump of Italian company COMET - BP 105 - assures proper efficiency and traingular structure of the heads and air chamber eliminate fluid pulsation
- Italian ARAG valve with pressure compensation, where shutting off of one or few sections does not cause pressure drop (growth) on the other sections
- Glyceric manometer with scale every 0,1 bar in the range 0 - 5 bar
- ARAG upper mixer placed in the gate sieve under the lid
- ARAG injector stirrer led directly from the pump, maintains the same level of working liquid concentration
- Three levels of filtration outside the gate sieve: suction filter and self-cleaning filter at the control valve and filters in the nozzleholders. Cartridges of the suction and self-cleaning filters are made of stainless steel
- Powder painting of the whole steel construction of the machine assures perfect protection against corrosion
- Articulated-telescopic shaft
- Hydraulic lifting of the boom
- Additional stabilization actuator (actuator with additional pair of hoses or independent hydraulic distributor)
- 5-position nozzleheads with two TT nozzles of wide stream
- Electric control work/overflow
- Electric control work/overflow and pressure regulation
- Electric control of pressure and sections of the sprayer
- Side-placed mixer of Italian POLMAC company
- Specialist nozzles
- Ejector
- Lightning instalation
- External washer of the sprayer
- Main tank washer
- Hydrant connection
- Transport wheels of the sprayer
- Section filters (5 sections)
- ARAG foam marker (+10 l of foam marker concentrate)
- ARAG Bravo 180 S computer (5 liquid sections)
- ARAG Bravo 300 S computer (5 liquid sections)
- ARAG Bravo 400 S computer (automatic shutting off of the liquid sections thanks to the generally accessible GPS signal)
- ARAG Bravo 400 S Seletron computer (automatic shutting off of thenozzles thanks to the generally accessible GPS signal)
- Pressure sensor for the computer
- Sensor of oil level in the liquid pump that cooperates with ARAG Bravo 300S computer
- Tank capacity (l) 600
- Tank type Italian, polythene 3 in 1 (three tanks in one solid)
- System-washing tank yes
- Hand-washing tank yes
- Working width (m) 12
- Boom stabilization mechanical
- Boom description spreaded manually, mechanical lifting, 5 sections
- Nozzles TT with a wide stream
- Range of boom lifting (m) 0,5-1,7
- Pump Comet BP 105
- Pump efficiency (l/min) 105
- Valve Arag 6-sections, manual without pressure compensation
- Working speed (km/h) 3-10
- Liquid dosage (l/ha) up to 800
- Efficiency (ha/h) 3-6
- Weight (kg) 295
- Power demand (HP) 35
- Nozzleheads single, with anti-drip valve
- Lightning installation option
- Dimensions
- Length (m) 1,2
- Width (m) 2,5
- Height (m) 2,1
