AgrovisionModel A-ARH1.2 - Agricultural Rear Hoists / Cranes

SHARE

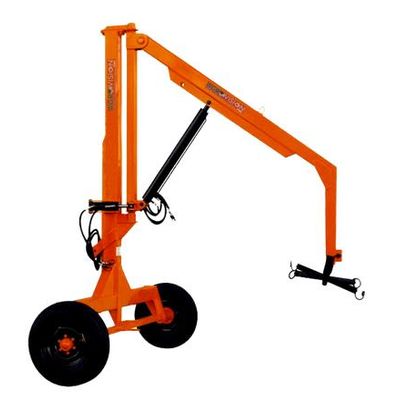

The Rear Agri-Hoist have special characteristics to speed up the harvest of citrus fruits or the movement of loads within the property. The tires relieve the hydraulic lift of the tractor, allowing work with safety and greater efficiency. The use of four-pronged hook (special for big-bag). The winches reach a height of 5.5 meters raising loads of up to 1,200 kg, with the cylinder in the rear hole. The rest keeps the winch in the vertical position, facilitating the reattachment.

Most popular related searches
  • Horsepower Required 40 - 95 HP
  • Working Widths 1810 mm
  • Hitch Types CAT-II
  • LOAD CAPACITY 1200 Kg.
  • ARM HEIGHT 3450 mm
  • TOTAL WIDTH 1810 mm
  • FULL HEIGHT 5500 mm
  • ARM MOVEMENT 90°
  • WHEEL TO WHEEL DISTANCE 1600 and 2300 (Adjustable)
  • TYRE 7.50 x 16
  • NO. OF HYDRAULIC CYLINDER 02
  • APPROX. WEIGHT 500 Kg.
  • REQUIRED TRACTOR 40 - 95 HP
