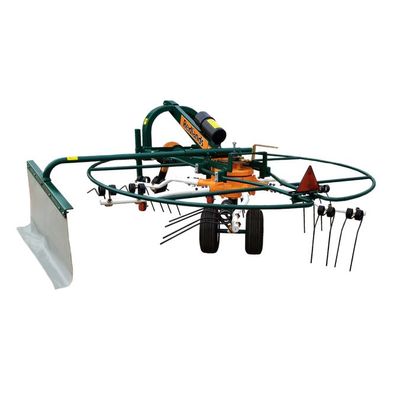

Redlands - Model RRM 626 -Agricultural Rotary Hay Rake

FromRedlands Ashlyn Motors PLC

SHARE

Hay RAKE is an agricultural rake used to collect cut hay or straw windrows for later collection by a straw baler. It is also designed to spread the hay and turn it over so that it may dry.

Most popular related searches

rotary hay rake

agriculture rake

straw windrower

Hitching System: CAT- II Standard 3 Point hitch
Tractor Power Requirements: 25 Hp and Above
Max - working Width: 230 cm
Rotor Diameter: 180 cm
No. of arms per rotor Unit: 6
Tine Diameter: 8mm
Working Speed: 2 to 6 km/Hour
Standard Tyres: 13 x 5.00 - 6 PR
Dimension (LxWxH): 210 x 223 x 106 cm
Weight: 210 kg

Cam box provided for dust protection in cam drives
Height adjustment provision for ground wheels
Spring tines made upof grade 3 material
Heavy duty gearbox
Triangle profiled male & female time arms
Spring tines made up of grade 3 material
