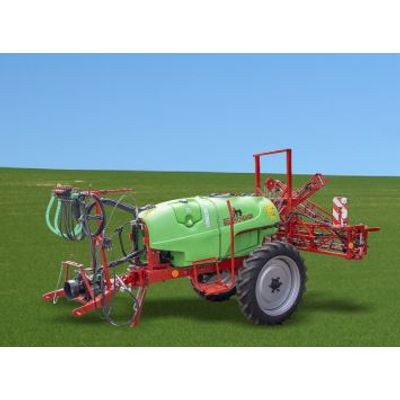

Apollo - Model 1000 H - Agricultural Trailed Sprayers
Tank of 1000 l capacity made of polythene. Three tanks hidden in one solid: main tank, clean water tank and hand-washing tank.
Most popular related searches
- Field boom of working width 15 m with trapezoidal system of stabilization, spreaded manually, lifted hydraulically, divided into 5 sections, after hitting an obstacle it leans backwards and forwards protecting nozzles and nozzleholders from damage
- Lightning installation
- 5-position nozzleholders KRUKOWIAK with anti-drip valves placed on the acidproof tube every 50 cm allow for quick change of the nozzles
- TeeJet TT 03 and 04 slotted nozzles
- 4-section pump of Italian company COMET - BP 151 - assures proper efficiency and square structure of the heads and air chamber eliminate fluid pulsation
- Italian ARAG valve with pressure compensation, where shutting off of one or few sections does not cause pressure drop (growth) on the other sections
- Glyceric manometer with scale every 0,1 bar in the range 0 - 5 bar
- ARAG upper mixer placed in the gate sieve under the lid
- ARAG injector stirrer led directly from the pump, maintains the same level of working liquid concentration
- Three levels of filtration outside the gate sieve: suction filter and self-cleaning filter at the control valve and filters in the nozzleholders. Cartridges of the suction and self-cleaning filters are made of stainless steel
- Powder painting of the whole steel construction of the machine assures perfect protection against corrosion
- Articulated drawbar allows for copying the tractor tracks on the headland
- Articulated-telescopic shaft
- Wheels 9.5 x 32”
- Possibility of regulation of wheel spacing in the range
- Additional stabilization actuator (actuator with additional pair of hoses or independent hydraulic distributor)
- Electric control work/overflow
- Electric control work/overflow and pressure regulation
- Electric control of pressure and sections of the sprayer
- Side-placed mixer of Italian POLMAC company
- Specialist nozzles
- Ejector
- External washer of the sprayer
- Main tank washer
- Hydrant connection
- Section filters (5 sections)
- ARAG foam marker (+10 l of foam marker concentrate)
- Straight hitch
- Night work lightning
- Fenders
- ARAG Bravo 180 S computer (5 liquid sections)
- ARAG Bravo 300 S computer (5 liquid sections)
- ARAG Bravo 400 S computer (automatic shutting off of the liquid sections thanks to the generally accessible GPS signal)
- ARAG Bravo 400 S Seletron computer (automatic shutting off of thenozzles thanks to the generally accessible GPS signal)
- Pressure sensor for the computer
- Sensor of oil level in the liquid pump that cooperates with ARAG Bravo 300S computer
- Tank capacity (l) 1000
- Tank type Italian, polythene 3 in 1 (three tanks in one solid)
- System-washing tank yes
- Hand-washing tank yes
- Working width (m) 15
- Boom stabilization mechanical
- Boom description spreaded manually, hydraulic lifting
- Nozzles TT with a wide stream
- Pump Comet BP 151
- Pump efficiency (l/min) 151
- Valve Arag 6-sections, manual with pressure compensation
- Nozzleheads 5-position with two TT nozzles with a wide stream
- Hitch torsional (straight in option)
- Wheels 9,5x32
- Wheel spacing adjustable in the range 135-180 cm
- Power demand (HP) 48
- Lightning installation standard
