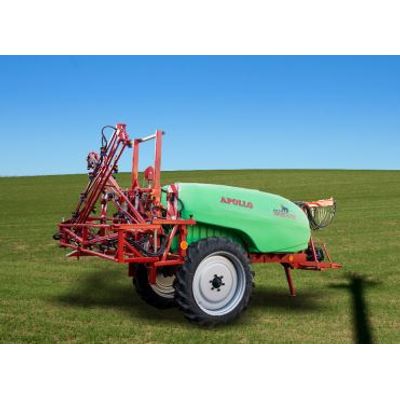

Apollo - Model 1500 H - Agricultural Trailed Sprayers

Tank of 1500 l capacity made of polythene. Three tanks hidden in one solid: main tank, clean water tank and hand-washing tank.

Most popular related searches

Field boom of working width 15 m with trapezoidal system of stabilization, spreaded manually, lifted hydraulically, divided into 5 sections, after hitting an obstacle it leans backwards and forwards protecting nozzles and nozzleholders from damage
Lightning installation
5-position nozzleholders KRUKOWIAK with anti-drip valves placed on the acidproof tube every 50 cm allow for quick change of the nozzles
TeeJet TT 03 and 04 slotted nozzles
4-section pump of Italian company COMET - BP 171 - assures proper efficiency and square structure of the heads and air chamber eliminate fluid pulsation
Italian ARAG valve with pressure compensation, where shutting off of one or few sections does not cause pressure drop (growth) on the other sections
Glyceric manometer with scale every 0,1 bar in the range 0 - 5 bar
ARAG upper mixer placed in the gate sieve under the lid
ARAG injector stirrer led directly from the pump, maintains the same level of working liquid concentration
Three levels of filtration outside the gate sieve: suction filter and self-cleaning filter at the control valve and filters in the nozzleholders. Cartridges of the suction and self-cleaning filters are made of stainless steel
Powder painting of the whole steel construction of the machine assures perfect protection against corrosion
Articulated drawbar allows for copying the tractor tracks on the headland
Articulated-telescopic shaft
Wheels 9.5 x 32”
Possibility of regulation of wheel spacing in the range

Additional stabilization actuator (actuator with additional pair of hoses or independent hydraulic distributor)
Electric control work/overflow
Electric control work/overflow and pressure regulation
Electric control of pressure and sections of the sprayer
Side-placed mixer of Italian POLMAC company
Specialist nozzles
Ejector
External washer of the sprayer
Main tank washer
Hydrant connection
Section filters (5 sections)
ARAG foam marker (+10 l of foam marker concentrate)
Straight hitch
Night work lightning
Fenders
ARAG Bravo 180 S computer (5 liquid sections)
ARAG Bravo 300 S computer (5 liquid sections)
ARAG Bravo 400 S computer (automatic shutting off of the liquid sections thanks to the generally accessible GPS signal)
ARAG Bravo 400 S Seletron computer (automatic shutting off of thenozzles thanks to the generally accessible GPS signal)
Pressure sensor for the computer
Sensor of oil level in the liquid pump that cooperates with ARAG Bravo 300S computer

Standard Equipment
