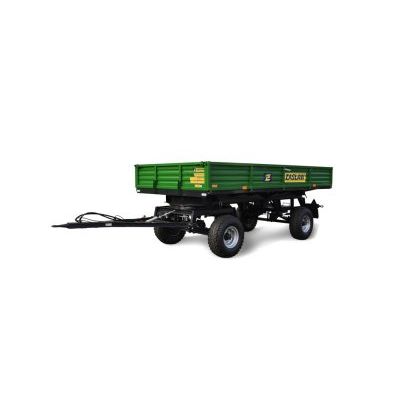

Tandem 10 - Model D-55 -Agricultural Trailer
Single-wire pneumatic braking system. Hand brake. Parking brake - spring cylinders. 2 axles, mechanical suspension - multi-leaf springs. Drum brakes. Tyres 11,5 / 80 r15,3 (new tyres, not regenerated). Steel rims. 12v electric installation. Hydraulic cylinder with oil cut-off valve at maximum deflection of the loading body to the back at 50°, to the sides at 47°, Openable dropsides of 500 mm height. Telescopic cylinder. Pneumatic, electrical, hydraulic sockets for second trailer. Triangle for slow-running vehicles. Box-body paiting in ral 3004 or 6002. Steel sheet thickness: floor (3mm), dropsides (2mm). Frame shot-blasted and painted with a primer ans top-coat paint ral 7021. Drawbar eye fi 40. Lines protecting the box-body. Mudflaps. Wheel wedges - 2 pcs.
- Loading capacity: 6 000 kg
- Gross Vehicle Weight: 9 500 kg
- Volume:5,25 / 8,9 m3
- Number of axles: 2
- Box-body length: 4 505 mm
- Box-body width: 2 233 mm
- Height: 1 850 mm
- Total length: 6 900 mm
- Width: 2 334 mm
- Platform height from the ground: 1 350 mm
- Dropsides height:500 mm
- Tyres size: 11.5/80 R15.3”
- Wheeltrack: 1 800 mm
- Max. speed: 40 km/h
Equipment With Extra Charge:
- tarpaulin with frame
- tarpaulin without frame
- spare wheel
- amortised / rotary stiff hitch
- wheels 315/65 R22,5
- wheels 400/60 R15,5
- box-body painting in non-standard colour
- top side of 350mm height
- plastic toolbox with wheel wrenches
- double-wire pneumatic braking system
- chute in the rear flap
