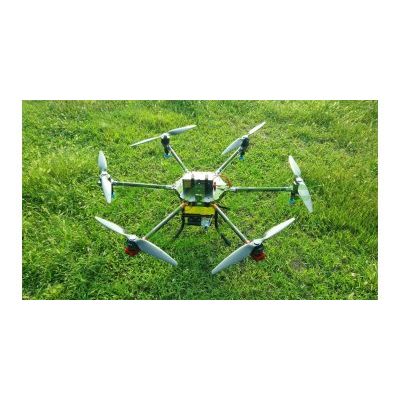

Joyance - Model 5L - Agriculture Sprayer Drone
Security: protect farmers away from pesticide harm, to prevent poisoning and heatstroke incidents; High efficiency: can spray 50-100 acres per day, 30 times more than traditional spraying method; Environment protection: can spray pesticides with fixed position and fixed orientation, reducing the pollution to water and soil; Pesticides saving: high degree of atomization, the chemical fog can be pressed to all levels of the crop, can save more than 30% of pesticides;
Most popular related searches
agriculture spraying drone
water pesticide
spraying drone
agriculture spraying
pesticide spraying
agriculture drone
soil water
- Water saving: can adopt ultra low volume spraying technology, water consumption is only 10% of traditional spraying method;
- Low cost: the cost is only 1/30 of traditional spraying method;
- Wide range of applications: not influenced by terrain and crop height, remote control, low altitudes flight, no harm to crop;
- Easy to use and maintenance: long life to use, low maintenance cost, easy to replace wearing parts.
- Ready to fly, easy to use;
- U-blox m8n GPS stand, much more accurate;
- 3K Carbon fiber frame and propellers, strong and stable;
- Umbrella folding frame, easy to transport;
- Aviation aluminum joint, light and durable;
- Quick release propeller, easy to disassemble;
- Waterproof sealed parts, away from water and pesticide;
- Big spraying width, high efficiency;
- Each nozzle is under propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers, so more effective.
- More motors to bear the payload, can continuously work for long time.
- Autonomous intelligent flight with waypoint (optional);
- Fail-safe, low voltage, no signal, return automatically.
- Technical Parameters : JT Sprayer5 (6 Axles - 6 Rotors)
- Pesticide Tank : 5L
- Self Weight : 7.5kg
- Max Take-off Weight : 15kg
- Flying Time : 10-15min
- Flying Radius : 1000m
- Flying Height : 0~200m
- Flying Speed : 0~12m/s
- Work Temperature : -10~70°C
- Work Humidity : 0-90%
- Spray Speed : 0~8m/s
- Spray Width/Nozzle No. : >3m / 4 Nozzles
- Spray Flow : 0.2~4L/min
- Spray Efficiency : 600-1500sq.m/min
- Flying Downward Airflow : 4~15m/s
- Wind Resistance : 10m/s
- Machine Size : Spread Size : W1.2m x L1.2m x H0.3m
- Folded Size : W0.5m x L0.4m x H0.5m
- Power System : Motor : Brushless
- Propeller : Carbon Fiber
- ESC : Rapid Throttle Response
- Flight Control : V7.1
- Remote Controller : 9 Channels
- Battery / Quantity : 6S 12000mAh 15C / 1pc
- Adaptor + Charger : Synchronous balance charger
- Packing Case : Aluminum Case
- Toolkit : Maintenance/Repair Tools
- Fixed Camera + Image Transmission : 600mw
- OSD : OSD
- Screen : 7"
- Ground Control Station Software + Radio Telemetry : V7.1A
