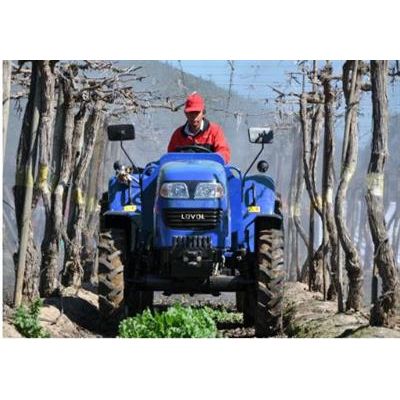

Lovol - Model TB504N -Agriculture Tractor

SHARE

Drive type 4*4. Overall dimension(L * W * H) 4000*1400*(1560/2500). Wheelbase (mm) 1990. Track(front/rear) 1080/960. Track(front/rear) regulating method Step/Step. Min.Ground clearance(mm) 310. Min.operating weight (with cab)(kg) 2380. Min.operating weight (without cab)(kg) 2240. Counterweight (max)(front/rear) 120/108. Gears(forward/reverse/creeper) 8+8/16+8. Theoretical speed of each gear(forward/reverse) 2.24-29.91/1.97-26.22；0.37-29.91/0.55-10.25.

Most popular related searches
agriculture drive
agriculture tractor
tractor

Engine

  • Brand Xinchai
  • Engine type 4-cylinder
  • Intake mode Natural intake
  • Number of cylinders 4
  • Bore 98
  • Stroke 105
  • Displacement(L) 3.168
  • Engine rated power kW@rpm 36.8
  • Rated speed 2400
  • Type of air cleaner Dry or wet type
  • Type of cooling system Forced water-cooled
  • Max. Torque@ revolving speed (rpm) 192/1600～1800
  • Specific fuel consumption rate at rated conditions (g/kW.h) ≤248
  • Fuel tank capacity (L) 42

Steering brake system

  • Type of steering system Hydraulic/mechanical
  • Type of steering gear Cycloid orbitrol steering gear
  • Type of braking system Disc type

Transmission system

  • Clutch type Single-action/double action
  • Gearbox type Two-axis mechanical gearbox
  • Gearbox shift mode Shift sleeve
  • Type of central transmission Spiral bevel gear type
  • Final transmission mode (front/rear) Planetary gear type

Walking system

  • Frame type Frameless
  • Tire Model (front/rear) 8.3-20/12.4-28

Working device

  • Type of hydraulic suspension system Open-center, semi-separated type
  • Type of linkage Three point rear linkage
  • Linkage classes Class II
  • Lift capacity(610mm point))kN 9.1
  • Regulating mode Force or position independent control
  • Type of PTO shaft Rear semi-detached type
  • The number of PTO shaft splines 6 splines/8splines
  • Outer diameter of PTO shaft spline φ35/φ38
  • PTO shaft speed 540/760 or 540/1000 or 760/1000

Hydraulic system

  • Hydraulic output flow (L/min) 23/45
