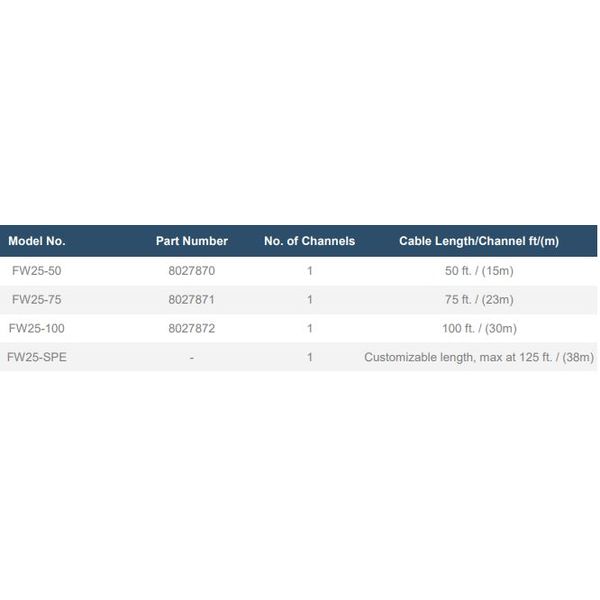

FluidWatch - Model FW25-50, FW25-75 & FW25-100 - Agriculture Water Leak Detection System

• 24/7 Continuous Monitoring
• Cable Sensor System
• Fast Respond Time
• Relay Output Capable

The FluidWatch leak detection system is designed to monitor small areas for water leaks. Its compact design and ease of installation is ideal for applications such as unmanned equipment rooms, small raised floor areas, and small tanks. The system continuously monitors the capacitance of the sensor cable and detects changes from the initial value. The system can operate as standalone leak detection system or integrate with third party systems via the dry contact.

• Fast response time with sensing water-based liquids in seconds
• Adjustable sensitivity from several inches to several feet
• Ruggedized sensing cable and not susceptible to dust /dirt contamination
• Custom sensing cable lengths available upon request
• LED indicators for power, leak and fault conditions with built-in audible alarm
• Compatible with 120 VAC or 240 VAC 50/60 Hz or 12 VDC power supply

Physical and Mountings

• Dimensions: 7.20” x 7.20” x 2.50” / (183mm x 183mm x 64mm)
• Weight: 1.75 lb. / (0.8 kg)
• Mounting: Wall mount through holes on back of panel

Environmental & Performance

• Operating Temperature: 0°F to 122°F / (-18°C to 50°C)
• Maximum Humidity: 95% RH at 122°F / (50°C)
• Ingress Protection: IP52 - standard indoor only

Electrical & Communications

• Supply Voltage: 110-240 VAC, 50/60 Hz, 0.3A/50VA, 24 VDC, 1 A/24 VA
• Relay Type: SPDT Relays, 10A / 250 VAC
• Number of Relays: 4 x SPDT Relays
