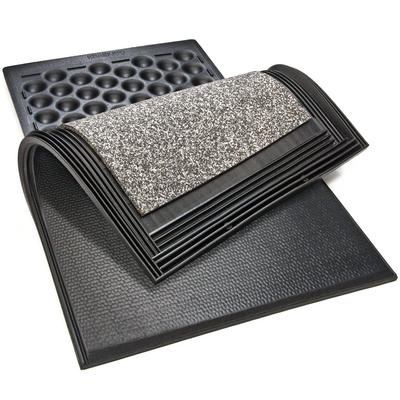

Agromatic - Model Kraiburg KEW Plus -3-Layer Cow Stall Mats

• Each of the three components adds additional layers of functional softness
• The soft lying area within mat’s edges promotes proper lying position as well as improves slip resistance while getting up and lying down
• Comfortable and skin-friendly surface
• Integrated slope to rear edge helps facilitate drainage to keep mats clean and dry
• Recommended for free stalls and tie stalls

Two Variations of KEW Plus:

• KEW Plus – the proven KEW Plus three-layer system which has been showcasing its durability since 2004
• KEW Plus LongLine – the same multi-layer technology that the traditional KEW Plus offers but extended it into an 82′ roll. Our 82′ roll covers approximately 21 stalls!

Looking for cow stall mats that balance comfort, hygiene, and durability? KRAIBURG KEW Plus is a proven three-layer mattress system for freestalls and tie stalls. A soft, supportive core with a robust top cover promotes increased lying time, easy rising, and cleaner stalls.

Why choose KEW Plus

• 3-layer comfort – engineered stack of base support, foam core, and heavy-duty top cover distributes pressure and protects joints.
• Encourages rest – soft, resilient feel supports rest, which can help improve production and overall cow comfort.
• Secure footing – pebbled texture on surface aids traction during lunging and standing.
• Cleanability – closed‑pore surface is easy to clean; edges and transitions finish neatly.
• Quiet stalls – reduces noise and hard impacts compared to concrete or thin mats.
• Built to last – KEW Plus has been KRAIBURG’s softest mat since 2004.

Best-fit applications

Use KEW Plus cow mats in:

• Freestall barns (new builds or retrofits)
• Tie stall barns (new builds or retrofits)

If you’re upgrading from thin toppers or worn foam pads, KEW Plus delivers a noticeable step up in comfort and longevity.

Product highlights

• Type: 3-layer freestall mattress system
• Construction: specially designed bottom layer, foam comfort core, heavy-duty top cover
• Surface: textured, low-porosity cover for traction and fast cleaning
• Edges/finishing: tailored fronts/backs for neat installation
• Format: supplied to suit standard stall widths and lengths

Installation guidance

• Verify stall dimensions and curb heights before ordering.
• Prepare a clean, level base; address low spots and sharp edges.
• Dry‑fit sections; align seams with stall layout and anchor per instructions.
• Finish edges neatly around dividers, brisket boards, and posts. Call Agromatic to discuss modifications needed.

Care & maintenance

• Scrape or brush daily; rinse as needed.
• Use approved, non-caustic cleaners.
• Inspect seams, fasteners, and high-wear zones during routine washdowns.

Thickness: approx. 1″

Mat Width: 49.25″

Standard Lengths: 46.5″ / 60″ / 67″ / 73.5″ / 86.5″

Tolerances:
thickness: +3/-2 mm
length + width: +/- 1.5 % (DIN ISO 3302-1 tolerance class M4)
The tolerances also apply within the mat and when installed.
