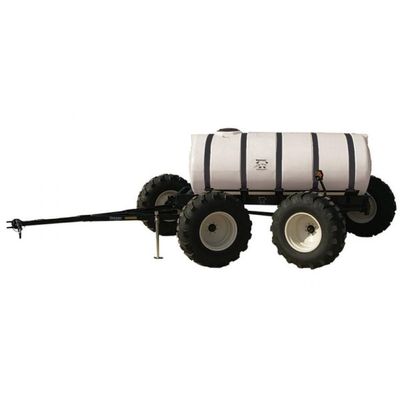

Yetter - Model 2000 Series - All Steer Cart
The high-capacity 2000 Series All Steer Cart can be used for fertilizer or herbicide as you plant, side-dress, strip-till, or cultivate. Available in dual- or single-tank setups, its reinforced steel frame supports a maximum load of 30,000 pounds. All four tires are able to turn and track, minimizing crop damage and compaction.
Most popular related searches
crop damage
fertilizer equipment
fertilizer
crop monitoring
cultivator
herbicide
fertilizer cart
fertilizer use
- Single-tank capacity: 1,600 gallon
- Dual-tank capacity: 1,600 + 400 gallon
- Maximum load: 30,000 lbs. (including cart)
- Axle: Standard for 30" rows; spacer kits available for 22", 36", and 38" rows
- Tires: Titan® 18.4-26/10-ply industrial lug with 26" ground clearance
- Spindles: 3" bolt-on (8)
- Weight, 2000 All Steer with tires: 4,300 lbs.
- Weight, 1600 All Steer with tires: 4,100 lbs.
- Width: 138"
- Height: 90"
- Length, front tire to back tire: 177"
- Length, tongue retracted: 289"
- 120" tread width offers outstanding load stability while allowing the axles to straddle the rows (other row spacing available)
- Low-profile tank design lowers center of gravity
- Front and rear axles pivot on greasable fifth wheels
- Front axle pivots up to 10° up or down from the center line to relieve stress using dual-pivot design
- Spring-loaded and self-engaging Sure Lock allows for quick change from four-wheel to two-wheel steering
- 18.4-26/12-ply industrial tires provide needed clearance for side-dress operations
- Standard hazard warning lights and SMV emblem
- Dual-tank model carries two products for split application or can be plumbed to increase single product capacity
- Available with black carts and white tanks or with green carts and yellow tanks (see model details tab)
