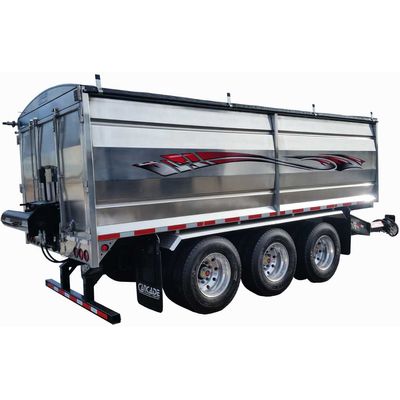

Aluminum Grain Pup Trailer

From

0

Our Stiff Pole Pup Trailers combine years of experience with modern technology and engineering. We build models with: two, three or four axles, air operated telescopic or static tongues, and numerous types of air or spring suspension.

  • Available in 18′ and 20′ tandem or 20′ and 22′ tridem, air ride or spring ride
  • Steel and aluminum bodies available
  • More than double your truck’s hauling capacity, most grain trucks today have enough horsepower to pull a Cancade Stiff-Pole Pup
  • Carry seed and fertilizer at seeding time all in one load
  • No backing up required to unload when using the Cancade 10″ cross box auger
  • Check your local regulations for drivers licensing requirements for farm registered vehicles – in most provinces special licensing is not required

Grain Body
  • See Aluminum Monobody grain box page
Grain Pup Chassis
  • QT100 Fabricated I beams & hitch transition
  • Bulldog 10,000LB jack-stand
  • Rigid pintle eye rated at 60,000lb trailer weight (SAF Holland)
  • Electrical suspension dump with manual override (If Air Ride Equipped)
  • Cancade CBI 2627 scissor hoist
  • Ingersoll axles
  • 49″ axle spread
  • Hutch H9700 (3 Leaf) spring suspension
  • Meritor Wabco 2S1M ABS ECU
  • Sealco air system
  • Auto slack adjusters
  • Grote sealed wiring harness & LED lights (7 pole electric)
  • Hydraulic & air lines run to hitch end
  • 22.5 tires on steel rims with 10 hole unimount rims
  • Sandblasted, epoxy primed and painted
  • Government certified rear impact guard
  • Government safety certified
Chassis Options
  • Air ride suspension (Hendrickson HT250 with 6.5″ ride height)
  • Tridem or tandem axle group
  • Tridem chassis available in 22′ or 20′
  • Tandem chassis available in 20′ or 18′
  • Aluminum rims
  • 24.5 Tires
  • Paint color
