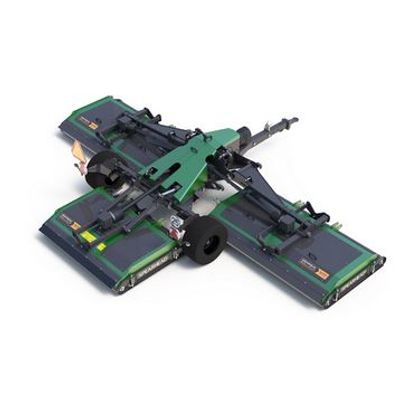

Spearhead - Model Rollicut Ecoline Series -Amenity Mower
The Spearhead Rollicut triple gang mower is designed for light-duty amenity mowing and gives a high-quality finish in material up to 20mm. It excels in parkland, golf course,orchard and topping applications and is the perfect choice for mounting on compact tractors.
This Spearhead Rollicut triple gang range is available in either 5.0 or 6.0 metre cutting widths, featuring three, high suction styles blades per rotor designed to offer a comparable finish to conventional cylinder mowers; but without the expensive maintenance costs. The machine features impressive deck articulation following ground contours effectively to give a level cut and reduced scalping.
Self-tensioning belt drive gives reliable power transmission and with 168mm full width fine adjustment front and rear rollers, heavily baffled deck design and rear rubber flap, will ensure a fine mulch cut and well distributed finish.
- Machine weight*: 2780kg (6129lbs)
- Hitch: 40mm fixed
- Hitch position: Rear mount only
- Cutting width: 4.85m (15′ 11″)
- Working width:4.97m (16′ 4″)
- Overall length: 4.76m (15′ 8″)
- Transport width: 2.66m (8′ 9″)
- Cowl height**: 490mm (1′ 8″)
- Transport height: 2.57m (8′ 6″)
- Cutting height: 0mm – 110mm (0″ – 4 5/16″)
- Cutting capacity: 20 mm (13/16″)
- Recommended tractor HP: 60hp (45kW)
- Power take-off speed: 540rpm
- Input shaft: 1 3/8″ Z6 and 35mm output shaft
- Driveline engagement: Fixed mechanical
- Gearboxes (x3): Cast iron housing
- Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
- Gearbox oil capacity (x1): 1.3 litres (2.3 pints)
- Belt quantity: 6 (2 per deck)
- Cowl construction: All welded construction
- Skid construction: Replaceable bolt-on skid
- Blade type: Fine cut, high lift
- Blade quantity: 27
- Blade tip speed: 87m/s (17126fpm)
- Roller diameter (x2) (front+rear): 168mm (6 1/2″)
- Roller adjustment: Manual
