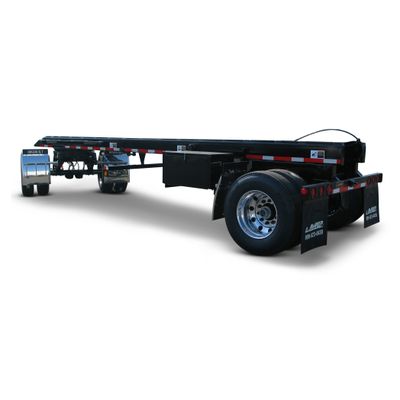

Amrep - Model AMTTR-26 -Roll-Off Pull Trailer
FromAmrep, Inc.
Amrep`s transfer trailer is a 26` reeving unit with a container capacity of up to 24`. Our transfer trailers are ideal for multiple long-haul pickups and deliveries, eliminating the need for a second roll off unit.
Type
- Reeving system
Rail Size
- 10” x 4” x 3/8” rectangular tubing 26’ width – 34”
Container Capacity
- Up to 24” (larger available)
Wheelbase
- 236"
Suspension
- 20,000 lbs three leaf each axle
Axles
- 23,000 lbs k-b, 5” O.D. ½” wall tubular
Brakes
- Front – 6-½” x 6” air “S” cam with manual slack adjusters
- Rear – same as front with spring brake
- Anti-lock brake system
Lighting
- LED light package
Hubs
- Inboard type 10 stud (3/4”)
Tongue
- Air lift low mount
Cable Pulley
- 9” diameter with bronze bushing
Rollers
- (3) each rail 4-½” diameter with Zerk fittings
Fenders
- Quarter fenders each wheel
Tires & Wheels
- 11R22.5 tires on 22.5 x 8.25 steel hub pilot wheels
(advise color)
Options
- Aluminum wheels
Reeving Cylinders
- Single stage, double acting
- Length – 97-½”
- Diameter – 4-½”
- Bore – 4”
- Stroke – 84”
- Rod – 2-½” chrome plate
- Material – D.O.M. tubing
Rear Bumper
- Rear bumper with tail, stop, backup lights and mud flaps
Estimated Weight
- 7,500 lbs
Paint
- Glossy black
