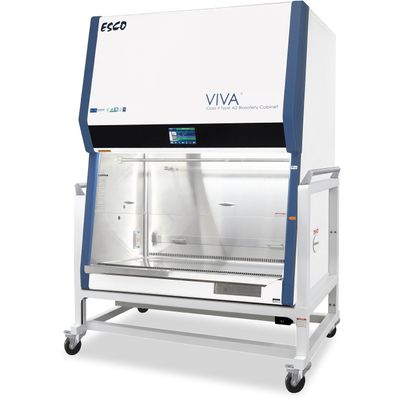

Esco VIVA - Model G4 - Animal Containment Workstation

Centurion Touchscreen Controller

• Intuitive, comprehensive, and easy-to-understand
• Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
• Defined details of alarm types with clear instructions for proper intervention
• Centered and angled down for easy reach & viewing
• Selectable Quickstart mode for fast operation

Dimmable LED

• Adjustable work zone brightness
• Ideal light intensity of 1000 lux
• Saves energy and optimizes work comfort

Ergonomic Sash

• 12” sash opening for mouse and rat cages
• Frameless, shatterproof, and UV-absorbing tempered glass

Tray support beams and holder

• Support beams for less vibration and holder for easy drain pan cleaning

USB Port and Remote Modbus

• USB port to access cabinet data log and BMS connectivity
• Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

Cabinet Construction

• Stainless steel side walls with side capture zones and negative pressure to optimize containment
• Single-piece work tray, spill retaining and easy to clean

Green Product

• Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
• Extremely low energy consumption
• Standby mode allows reduced power consumption by 80%

ULPA Filter

• 10x filtration efficiency compared to the HEPA filter
• Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
• Same 10 years filter life and replacement cost as HEPA filters
• *99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
• *>99.999% at MPPS, H14 as per EN 1822 EU

Isocide™ Antimicrobial Powder Coating

• Eliminates 99.9% of surface bacteria within 24 hours of exposure

Vivarium mute

• Allows users to mute the sash unsafe alarm during large equipment loading such as a rat cage.
