Double-Crane - Model 1T/H - HKJ250 -Animal Feed Pellet Line Machine

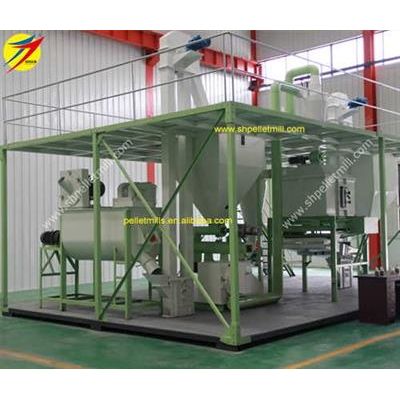

This HKJ250 animal feed pellet line is a complete set of machines that are specifically used to make feed pellets. The animal feed machine is produced by Shandong Double Crane Machinery Manufacture Co.,Ltd. The capacity can range from 1t per hour to 2t per hour. This HKJ250 feed pellet line is generally including the following process: raw materials crushing process and mixing process, pellet making process, pellet cooling process, (pellet crumbling process), sifting process .Each process includes different kinds of machines.All these machines form a whole set which guarantee the automatic production of feed pellets in large quantity and high quality.
- The animal feed pellet line covers little space and is highly-automatized.
- It can produce smooth and hard pellets which are suitable for all kinds of animals
- The pellets are very nutritional and can satisfy the growth needs of animals.
The key machine of animal feed machine line is ring die feed pellet mill which is used to press the powder into pellets directly. It decides the capacity of the whole feed line.The following is the technical parameters of the feed pellet mill:
- Capacity (t/h) 1-2
- Main Power(kw) 22
- Conditioner Power (kw) 2.2
- Feeder Power(kw) 0.75
- Inside Diameter(mm) 250
- Pellet size(mm) 2-8
- Machine Size(mm) 1.55*1.3*1.4
- Machine Weight(t) 1.2
- Remark Optional pellet machine power 22kw /37kw/55kw/110kw/132kw
